XR650R Parts List

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	15771551000	CLIP, OIL DRAIN TUBE	1	2.41
2	15772MN1670	CLIP B, BREATHER TUBE	1	1.47
3	17204MBN670	ELEMENT, AIR CLEANER	1	15.33
4	17207MBN670ZA	COVER, AIR CLEANER NH196	1	79.20
5	17214MBN670	TRAP, FLAME	1	7.17
6	17217MBN670	HOLDER, CONNECTING TUBE	1	8.60
7	17219MBN670	SEAL A, AIR CLEANER COVER	1	2.09
8	17223MBN670	SPRING, AIR CLEANER CASE LID	1	1.66
9	17224KN5670	WASHER, AIR CLEANER COVER	3	1.23
10	17225KN5670	STUD, 6X21	3	3.63
11	17225MBN670	AIR CLEANER HOUSING ASSY.	1	81.23
12	17227HC0000	TUBE, VINYL, 11X15X45	1	3.19
13	17240MBN670	DUCT, IN.	1	8.99
15	17241MBN670	CAP, AIR CLEANER CASE	1	5.05
16	17245MBN670	MUDGUARD	1	10.57
17	17253MBN670	TUBE, AIR CLEANER	1	26.20
18	17316611000	CLIP, BREATHER TUBE	1	1.46
19	17358HA0680	TUBE, DRAIN	1	1.91
20	17370MBN670	TUBE AIR CLEANER BREATHER	1	1.96
21	64508KE8700	PLATE, SPRING	3	6.55
22	90106MN9000	BOLT, FR. FENDER FIXING	1	1.56
23	91410MN1671	CLIP, 2X70	1	1.43
24	9390325210	SCREW, TAPPING, 5X12	2	0.07
25	9391325180	SCREW, TAPPING, 5X10 (PO)	6	0.42
26	9500202120	CLIP, TUBE (B12)	1	0.54
27	9501868250	AIR CLEANER TUBE	1	2.14
29	15712PD1811	BREATHER TUBE PROTECTOR	1	1.97

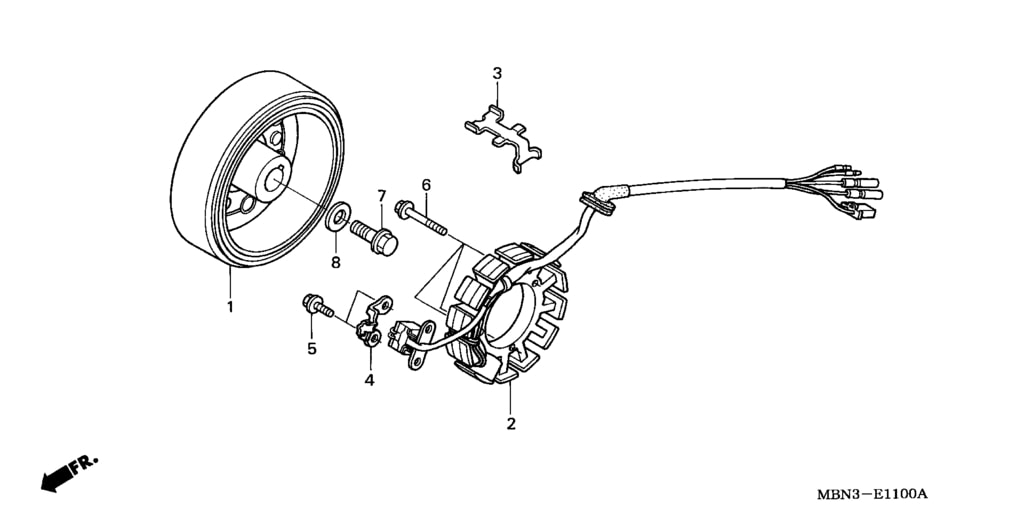

Alternator (US Version)

Part Ref. Genuine Part # Description Quantity GBP £

1 31110MBN671 FLYWHEEL COMPLETE 1 362.90

2 31120MBN671 STATOR COMPLETE 1 302.50

3 32111KK0000 CLAMPER, CORD 1 2.58

4 32112MBN670 CLAMPER, CORD 1 2.91

5 90004GHB630 BOLT, FLANGE, 6X16 (NSHF) 2 0.91

6 90004GHB670 BOLT, FLANGE, 6X25 (NSHF)(ARAI) 3 0.94

7 90023471000 BOLT, FLANGE, 12X50 1 3.84

8 90402PB2000 WASHER, 12X30X4.5 1 1.95

Bottom Yoke

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	31110MBN671	FLYWHEEL COMPLETE	1	362.90
2	31120MBN671	STATOR COMPLETE	1	302.50
3	32111KK0000	CLAMPER, CORD	1	2.58
4	32112MBN670	CLAMPER, CORD	1	2.91
5	90004GHB630	BOLT, FLANGE, 6X16 (NSHF)	2	0.91
6	90004GHB670	BOLT, FLANGE, 6X25 (NSHF)(ARAI)	3	0.94
7	90023471000	BOLT, FLANGE, 12X50	1	3.84
8	90402PB2000	WASHER, 12X30X4.5	1	1.95

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	33742HB9641	REFLECTOR, FR. REFLEX	2	10.61
4	45467MG2670	STAY, FR. REFLECTOR	2	4.10
6	45470MBN670	GUIDE COMP., BRAKE HOSE	1	7.21
7	53203MBN670	GUIDE, SPEEDOMETER CABLE	1	1.35
8	53214KA3732	DUST SEAL, STEERING HEAD (ARAI)	1	2.97
9	53214KZ4701	DUST SEAL, STEERING HEAD (ARAI)	1	3.13
10	53219MBN670	STEM SUB ASSY., STEERING	1	238.85
11	53229MN1650	THREAD, STEERING HEAD TOP	1	10.01
12	90107KF0000	BOLT, FLANGE, 8X40	4	1.93
13	91015KZ4701	BEARING, HEAD PIPE (NTN)	1	20.52
14	91015425832	BEARING, HEAD PIPE UPPER (NACHI)	1	20.33
15	960010601200	BOLT, FLANGE, 6X12	1	0.69

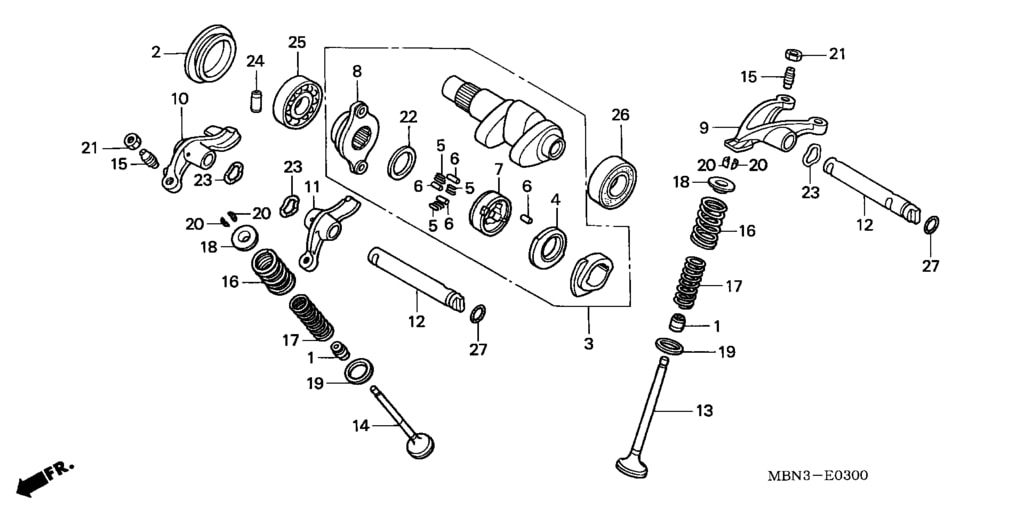

Cam Shaft

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	12209413003	SEAL, VALVE STEM (ARAI)	4	4.89
2	12312MBN670	CAP, CYLINDER HEAD SIDE	1	7.10
3	14000MBN670	CAMSHAFT ASSY.	1	227.65
4	14102MBN670	CAM, REVERSE	1	32.42
5	14103MN1670	SPRING, ROLLER	3	0.75
6	14115MN1670	ROLLER, 4X10	4	1.91
7	14121MBN670	OUTER, DECOMPRESSION CLUTCH	1	32.42
8	14325MBN670	FLANGE, CAM SPROCKET	1	26.69
9	14431MBN670	ARM, IN. ROCKER	1	29.86
10	14441MBN670	ARM, R. EX. ROCKER	1	21.17
11	14442MBN670	ARM, L. EX. ROCKER	1	21.17
12	14451MBN670	SHAFT, ROCKER ARM	2	17.93
13	14711MBN670	VALVE, IN.	2	15.51
14	14721MBN670	VALVE, EX.	2	34.96
15	14744PT0004	SCREW, TAPPET ADJUSTING	4	2.45
16	14751MBN670	SPRING, VALVE OUTER	4	5.55
17	14761MBN670	SPRING, VALVE INNER	4	3.64
18	14771MR1000	RETAINER, VALVE SPRING	4	5.05
19	14775ME9000	SEAT, VALVE SPRING	4	6.95
20	14781MB9000	COTTER, VALVE	8	1.97
21	90206590000	NUT, TAPPET ADJUSTING	4	0.91
22	90401MBN670	WASHER, THRUST, 25.6MM	1	0.76
23	90402MBN670	WASHER, WAVE, 14MM	3	0.76
24	90701KK0000	DOWEL PIN, 8X17.5	1	1.47
25	91002MK5008	BEARING, RADIAL BALL, 6904C	1	12.98
26	91003KF0008	BEARING, RADIAL BALL, 6904	1	8.92
27	91309ML7003	O-RING, 9.6X2.6 (ARAI)	2	1.48

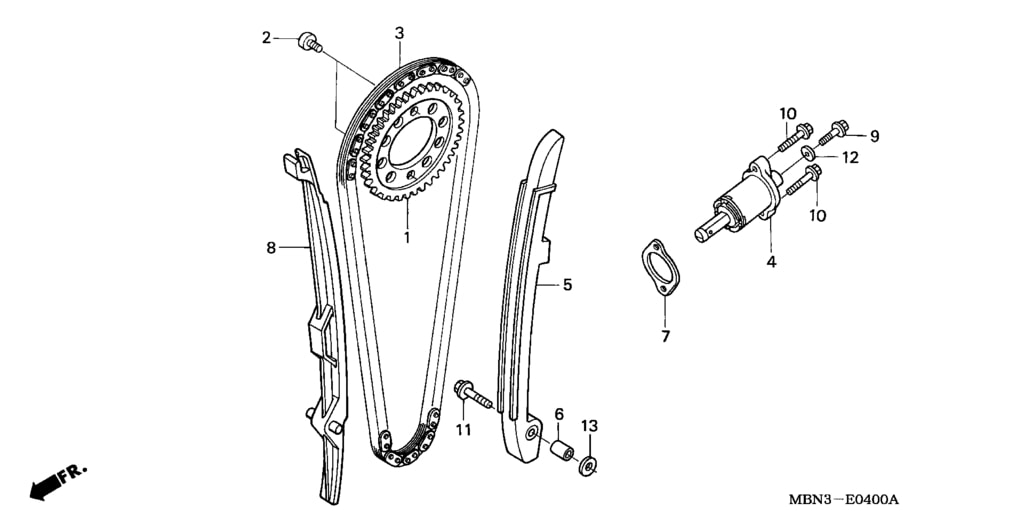

Cam Chain Tensioner

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	14321MBN670	SPROCKET, CAM (38T)	1	24.43
2	14322MAN620	BOLT, SPECIAL KNOCK, 7X9.5	2	3.49
3	14401MBN671	CHAIN, CAM (122L)(BORG-WARNER)	1	50.71
4	14500MAZ000	LIFTER COMP., TENSIONER	1	48.70
5	14511MBN670	TENSIONER, CAM CHAIN	1	26.86
6	14515KF0000	COLLAR, TENSIONER, 6X9	1	1.76
7	14560KCW851	GASKET, TENSIONER LIFTER	1	2.66
8	14620MBN671	GUIDE, CAM CHAIN	1	17.04
9	90004GHB600	BOLT, FLANGE, 6X10 (NSHF)	1	1.88
10	90004GHB670	BOLT, FLANGE, 6X25 (NSHF)	2	0.94
11	90088MK4600	BOLT, FLANGE, 6X25	1	1.63
12	90442397000	WASHER, SEALING, 6MM	1	0.41
13	90482567000	WASHER, SPECIAL, 6MM	1	0.41

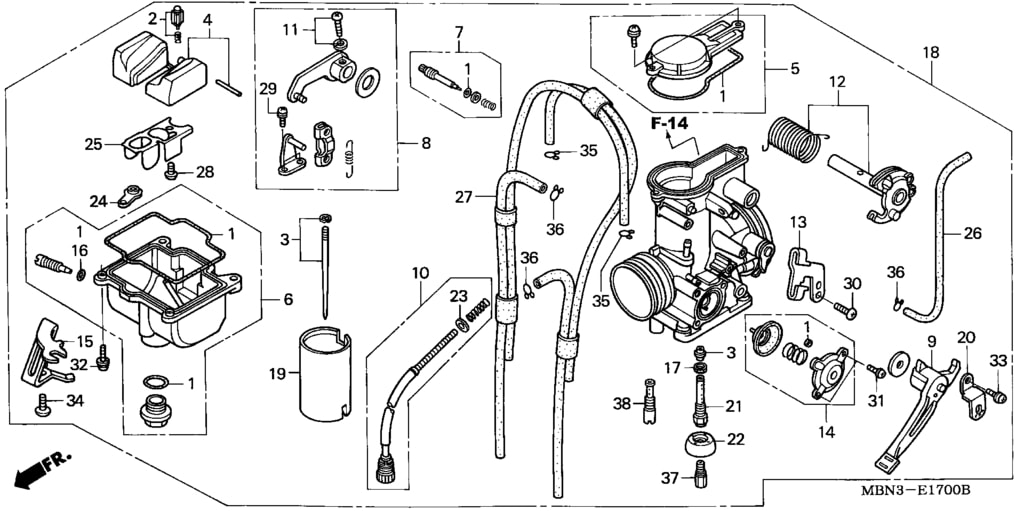

Carburetor

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	16010MBN671	GASKET SET	1	13.48
2	16011KA3741	VALVE SET, FLOAT	1	24.71
3	16012MBN671	NEEDLE SET, JET	1	20.33
4	16013KA3741	FLOAT SET	1	27.57
5	16014MBN671	TOP SET	1	19.56
6	16015MBN671	CHAMBER SET, FLOAT	1	45.53
7	16016KN4L10	SCREW SET A	1	10.08
8	16018MBN671	ARM SET, LINK	1	74.42
9	16019MBN671	LEVER COMP., CHOKE	1	13.59
10	16028MBN671	SCREW SET B	1	6.37
11	16029KCE670	SCREW SET C	1	3.43
12	16032MBN671	LINK SET, THROTTLE	1	72.81
13	16038MBN671	PLATE, STAY	1	4.90
14	16048MBN671	VALVE SET, AIR CUT	1	70.48
15	16068MBN671	PLATE, STAY	1	5.86
16	16076ND5004	O-RING, 1.3X4.3	1	1.11
17	16091KAE000	NUT, HEX.	1	1.06
18	16100MBN672	CARBURETOR ASSY. (PE78A B)	1	452.64
19	16112MBN671	VALVE, THROTTLE	1	42.45
20	16119MBN671	PLATE, SETTING	1	3.25
21	16165MBN641	HOLDER, NEEDLE JET	1	13.91
22	16168KA5004	HOLDER, JET	1	4.61
23	16178ML7004	WASHER, PLAIN	1	0.72
24	16179HA0003	BINDER	1	3.29
25	16185MBN671	PLATE, BUFFER	1	6.52
26	16198KN5671	TUBE	1	2.95
27	16199MBN671	TUBE COMP., AIR VENT	1	11.84
28	93500030061H	SCREW, PAN, 3X6	1	0.15
29	93500030081H	SCREW, PAN, 3X8	2	0.07
30	93500050100H	SCREW, PAN, 5X10	1	0.07
31	938920401018	SCREW-WASHER, 4X10	2	0.54
32	938920401618	SCREW-WASHER, 4X16	4	0.54
33	938920501018	SCREW-WASHER, 5X10	1	0.39
34	938920501218	SCREW-WASHER, 5X12	1	0.39
35	9500202079	CLIP, TUBE (B7)	2	0.53
36	9500202659	CLIP, TUBE (B6.5)	3	0.50
37	991013571120	JET, MAIN, #112	-1	5.82
37	991013571150	JET, MAIN, #115	-1	5.82
37	991013571180	JET, MAIN, #118	-1	5.82
37	991013571200	JET, MAIN, #120	-1	5.82
37	991013571220	JET, MAIN, #122	-1	5.82
37	991013571250	JET, MAIN, #125	1	5.82
37	991013571280	JET, MAIN, #128	-1	5.82
37	991013571300	JET, MAIN, #130	-1	5.82
37	991013571320	JET, MAIN, #132	-1	5.82
37	991013571350	JET, MAIN, #135	-1	5.82
37	991013571380	JET, MAIN, #138	-1	5.82
37	991013571400	JET, MAIN, #140	-1	5.82
37	991013571420	JET, MAIN, #142	-1	5.82
37	991013571450	JET, MAIN, #145	-1	5.82
37	991013571480	JET, MAIN, #148	-1	5.82
37	991013571500	JET, MAIN, #150	-1	5.82
37	991013571520	JET, MAIN, #152	-1	5.82
38	99103MAG0600	JET, SLOW, #60	-1	7.20
38	99103MAG0620	JET, SLOW, #62	-1	7.20
38	99105MBN0650	JET, SLOW, #65	1	7.37
38	99105MBN0680	JET, SLOW, #68	-1	7.37
38	99105MBN0700	JET, SLOW, #70	-1	7.37

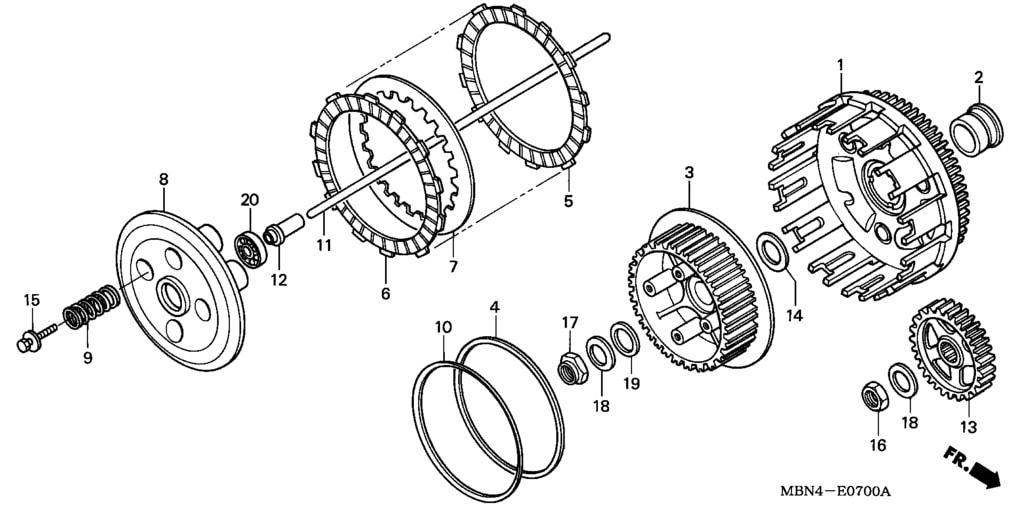

Clutch

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	22100MBN670	OUTER COMP., CLUTCH	1	321.00
2	22116MBN671	GUIDE, CLUTCH OUTER	1	15.52
3	22121MBN670	CENTER, CLUTCH	1	59.87
4	22125MBN670	SEAT, JUDDER SPRING	1	3.41
5	22201MBN670	DISK, CLUTCH FRICTION	1	7.85
6	22201MW3960	DISK, CLUTCH FRICTION	6	7.60
7	22321MG3000	PLATE, CLUTCH	6	8.37
8	22350MBN670	PLATE, CLUTCH PRESSURE	1	31.58
9	22401MBN670	SPRING, CLUTCH	4	2.12
10	22402MBN670	SPRING, JUDDER	1	9.46
11	22850MBN670	ROD, CLUTCH LIFTER	1	9.73
12	22853MBN670	LIFTER, CLUTCH	1	6.07
13	23121MBN670	GEAR, PRIMARY DRIVE (43T)	1	49.19
14	52143KZ3860	WASHER, SWINGARM SIDE	1	1.66
15	90022MM5000	BOLT-WASHER, 6X25	4	1.42
16	90235MN1670	NUT, 18MM	1	3.14
17	90236HA0000	NUT, LOCK, 18MM	1	4.90
18	90432428000	WASHER, LOCK	2	1.19
19	90456KA4000	WASHER, THRUST, 18X32	1	1.44
20	961006001000	BEARING, RADIAL BALL, 6001	1	8.14

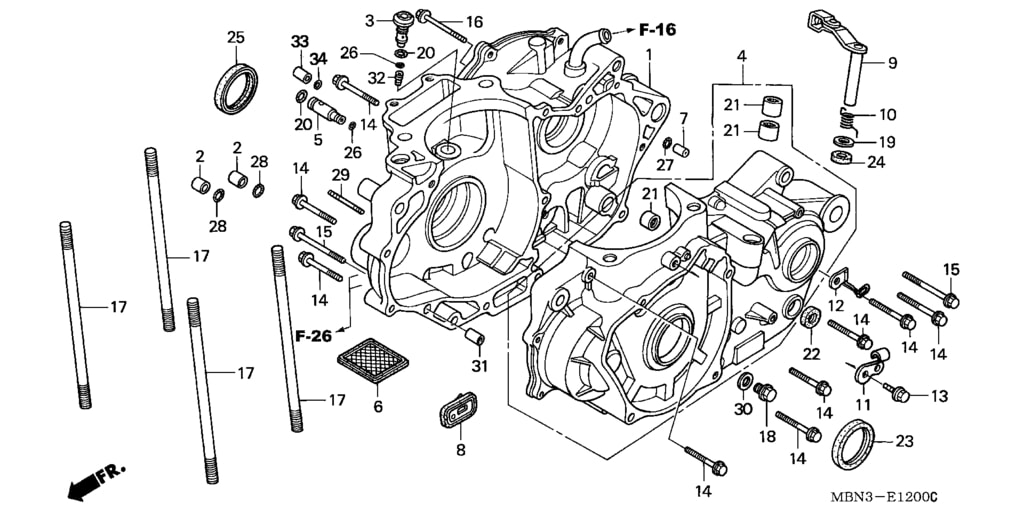

Crankcases

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	11100MBN671	CRANKCASE COMP., R.	1	295.86
2	11134MBN670	COLLAR, 12X10	2	1.43
3	11145MBN670	JET COMP., OIL	1	14.47
4	11200MBN670	CRANKCASE COMP., L.	1	295.86
5	15220MBN670	VALVE ASSY., RELIEF	1	14.43
6	15421428000	SCREEN, OIL FILTER	1	10.90
7	15515MBN670	ORIFICE, 1.5MM	1	3.33
8	18601MBW003	VALVE COMP., REED	1	10.59
9	22810MBN670	LEVER COMP., CLUTCH	1	25.38
10	22815MG3000	SPRING, CLUTCH LEVER	1	1.80
11	22821MBN670	RECEIVER, CLUTCH CABLE	1	4.11
12	32111MBN670	CLAMPER, A.C. GENERATOR CORD	1	4.09
13	90004GHB630	BOLT, FLANGE, 6X16 (NSHF)	1	0.81
14	90004GHB710	BOLT, FLANGE, 6X40 (NSHF)	10	0.93
15	90004GHB730	BOLT, FLANGE, 6X50 (NSHF)	2	1.08
16	90004GHB770	BOLT, FLANGE, 6X70 (NSHF)	1	1.91
17	90031MBN670	BOLT, STUD, 12X187	4	5.44
18	90131883000	BOLT, DRAIN PLUG, 12X15	1	1.78
19	90525GC4700	WASHER, BRAKE ARM	1	0.77
20	90751GK1003	O-RING, 8.5X1.7	2	0.78
21	91053719005	BEARING, NEEDLE, 12X16X10 (NTN)	3	13.0
22	91203KK3830	OIL SEAL, 14X22X5	1	1.58
23	91203MBN671	OIL SEAL, 34X54X6	1	4.48
24	91204KK0003	OIL SEAL, 12X18X5 (ARAI)	1	3.02
25	91207MBN671	OIL SEAL, 35X45X6	1	3.94
26	91301473003	O-RING, 7X1.7	2	0.70
27	91362VD6000	O-RING (P7)	1	0.56
28	91370461000	O-RING, 11.9X2.2	2	1.62
29	92900060450B	BOLT, STUD, 6X45	1	0.84
30	9410912000	WASHER, DRAIN PLUG, 12MM	1	0.16
31	9430108140	DOWEL PIN, 8X14	2	0.65
32	99101GHB0800	JET, MAIN, #80	1	4.52
33	14514115300	COLLAR, 6MM	1	1.67
34	91319ME5003	O-RING, 5.5X1.4	1	0.92

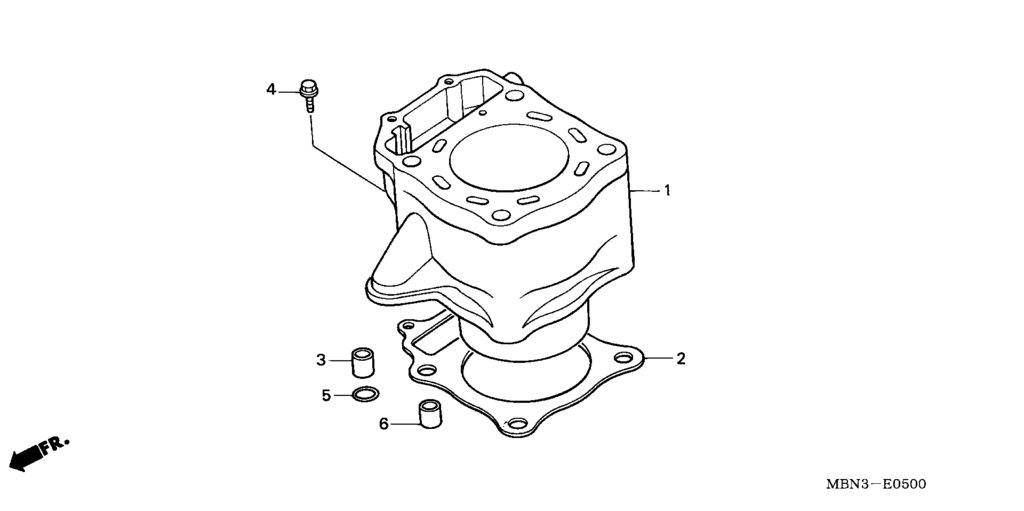

Cylinder

Part Ref. Genuine Part # Description
Quantity
GBP £

1 12100MBN670 CYLINDER 1 445.61

2 12191MBN670 GASKET, CYLINDER 1 5.24

3 15326KT7000 COLLAR, OIL PATH, 18MM 1 1.51

4 90004GHB680 BOLT, FLANGE, 6X28 (NSHF) 2 0.85

5 91312KE8003 O-RING, 17X3 (ARAI) 1 1.21

6 9430114200 DOWEL PIN, 14X20 2 1.26

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	12100MBN670	CYLINDER	1	445.61
2	12191MBN670	GASKET, CYLINDER	1	5.24
3	15326KT7000	COLLAR, OIL PATH, 18MM	1	1.51
4	90004GHB680	BOLT, FLANGE, 6X28 (NSHF)	2	0.85
5	91312KE8003	O-RING, 17X3 (ARAI)	1	1.21
6	9430114200	DOWEL PIN, 14X20	2	1.26

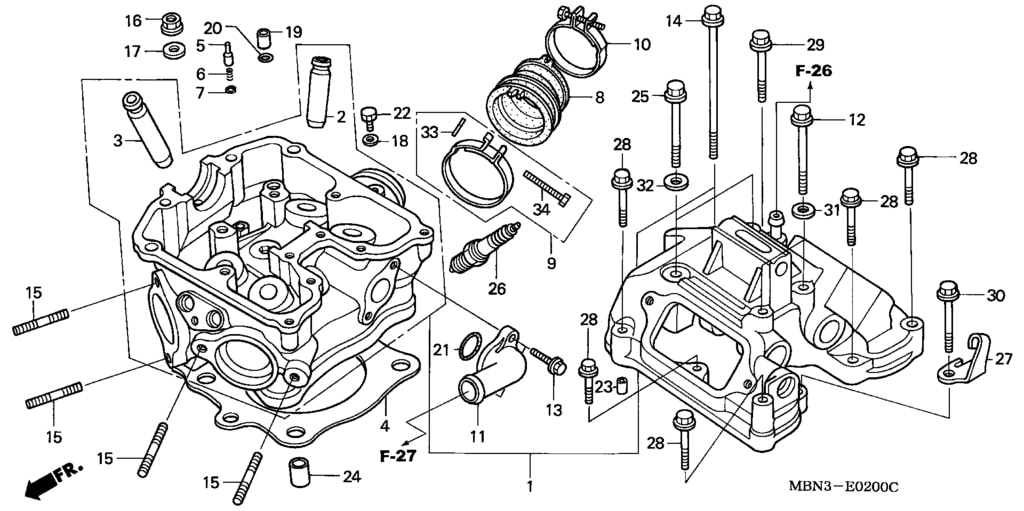

Cylinder Head

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	12010MBN670	HEAD SET, CYLINDER	1	678.15
2	12231MG8305	GUIDE, IN. VALVE (O.S.)	2	12.40
3	12233MG8305	GUIDE, EX. VALVE (O.S.)	2	13.93
4	12251MBN671	GASKET, CYLINDER HEAD	1	17.67
5	14125MBN670	PLUNGER, CAM SETTING	1	11.44
6	14126MBN670	SPRING, PLUNGER	1	2.47
7	14127MBN670	CLIP, 6MM	1	0.93
8	16210MBN670	INSULATOR, CARBURETOR	1	17.68
9	16218MAT000	BAND B, INSULATOR	1	3.52
10	16219MBB000	BAND, INSULATOR	1	4.32
11	19501MBN670	JOINT, WATER	1	12.62
12	90001MBN670	BOLT, SPECIAL, 6X62	2	2.46
13	90004GHB650	BOLT, FLANGE, 6X20 (NSHF)	2	0.99
14	90004GHB840	BOLT, FLANGE, 6X110 (NSHF)	2	1.02
15	90015MM9000	BOLT, STUD, 8X25	4	1.42
16	90204634000	NUT, FLANGE, 10MM	4	2.39
17	90403KM9000	WASHER, 10X24	4	0.59
18	90452323000	WASHER, SEALING, 5MM	1	0.43
19	90702MG8000	DOWEL PIN, 6X15	1	1.37
20	91305323000	O-RING, 5.8X1.9	1	2.35
21	91356169003	O-RING	1	1.61
22	92101050080H	BOLT, HEX., 5X8	1	0.36
23	9430108140	DOWEL PIN, 8X14	2	0.65
24	9430114200	DOWEL PIN, 14X20	2	1.26
25	957010807000	BOLT, FLANGE, 8X70	2	1.45
26	980795714E	PLUG, SPARK (BKR7E-11) (NGK)	1	3.81
26	980795715E	PLUG, SPARK (K22PR-U11) (DENSO)	1	3.81
26	980795814E	PLUG, SPARK (BKR8E-11) (NGK)	-1	2.78
26	980795815E	PLUG, SPARK (K24PR-U11) (DENSO)	-1	2.78
27	12324MBN670	RECEIVER, DECOMPRESSION CABLE	1	5.80
28	90004GHB680	BOLT, FLANGE, 6X28 (NSHF)	6	0.85
29	90004GHB700	BOLT, FLANGE, 6X35 (NSHF)	1	1.19
30	90004GHB750	BOLT, FLANGE, 6X60 (NSHF)	1	2.25
31	90441706000	WASHER, SEALING, 6MM	2	0.24
32	90442028000	WASHER, SEALING, 8MM	2	0.49
33	16222MV4300	NUT, SQUARE, 5MM	1	0.84
34	90005MM4000	BOLT, RECESSED, 5X32	1	1.12

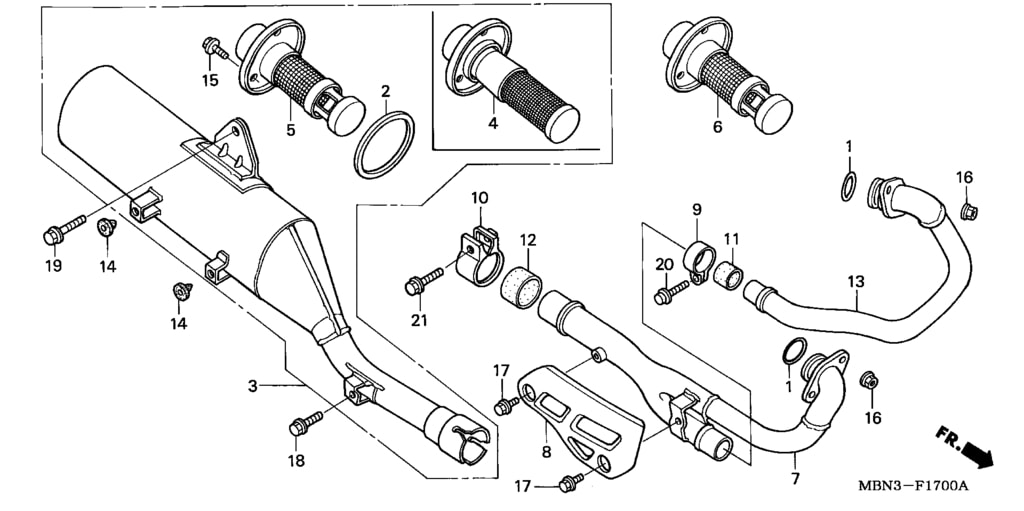

Exhaust System

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	18291MN5650	GASKET, EX. PIPE	2	1.63
2	18292MV4000	GASKET, MUFFLER	1	4.21
3	18300MBN671	MUFFLER ASSY.	1	350.30
5	18317MBN670	ARRESTER COMP., SPARK	1	111.40
7	18320MBN670	PIPE COMP., R. EX.	1	371.46
8	18325MBN670	PROTECTOR, EX. PIPE	1	37.66
9	18374MN1670	BAND, L. EX. PIPE	1	6.95
10	18375MG7000	BAND, R. RR. MUFFLER	1	10.79
11	18391MB0891	PACKING, EX.	1	5.65
12	18392MG7750	PACKING, MUFFLER	1	7.51
13	18420MBN670	PIPE COMP., L. EX.	1	205.66
14	83512KA4700	RUBBER, SIDE COVER	2	2.30
15	90101KCE000	BOLT, FLANGE, 6X10	3	1.30
16	9405008000	NUT, FLANGE, 8MM	4	0.54
17	960010601002	BOLT, FLANGE, 6X10	2	0.90
18	963000802007	BOLT, FLANGE, 8X20	1	0.94
19	963000802800	BOLT, FLANGE, 8X28	1	1.21
20	963000803500	BOLT, FLANGE, 8X35	1	1.17
21	963000804000	BOLT, FLANGE, 8X40	1	1.17

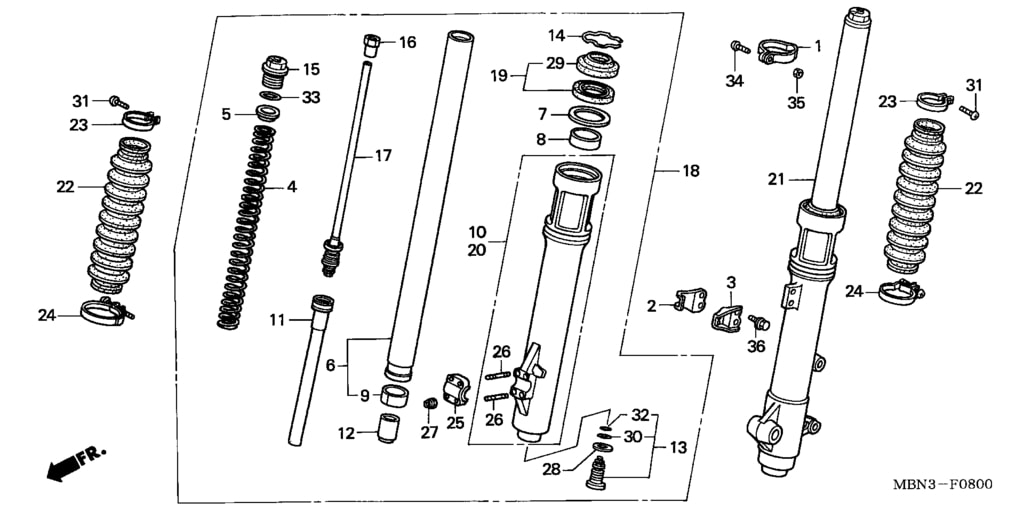

Forks

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	44832MBN670	CLAMPER, SPEEDOMETER CABLE	1	3.61
2	45461KG0000	CLAMP A, FR. BRAKE CABLE	1	6.13
3	45462KG0000	CLAMP B, FR. BRAKE CABLE	1	6.13
4	51401MBN671	SPRING, FR. FORK	2	27.26
5	51405MBN671	SEAT, SPRING	2	2.72
6	51410MBN671	PIPE COMP., FR. FORK	2	194.96
7	51412MAC741	RING, BACK UP	2	4.29
8	51414KZ4J11	BUSH, GUIDE	2	7.78
9	51415KZ4J11	BUSH, SLIDER	2	7.78
10	51420MBN671	CASE COMP., R. BOTTOM	1	211.48
11	51430MBN671	CYLINDER COMP.	2	107.81
12	51432MBN671	PIECE, OIL LOCK	2	9.17
13	51441MBN671	BOLT COMP., CENTER	2	69.08
14	51447MAC741	RING, OIL SEAL STOP	2	1.70
15	51450MBN671	BOLT	2	29.38
16	51451MBN671	NUT, HEX., 17MM	2	5.91
17	51470MBN671	ROD ASSY., PISTON	2	96.90
18	51480MBN671	FORK SUB ASSY., R. FR.	1	434.03
19	51490MBN671	SEAL SET, FR. FORK	2	16.78
20	51520MBN671	CASE COMP., L. BOTTOM	1	200.28
21	51580MBN671	FORK SUB ASSY., L. FR.	1	436.75
22	51611MBN671	BOOT, FR. FORK	2	24.35
23	51612MBN671	BAND, BOOT UPPER	2	4.97
24	51613MBN671	BAND, BOOT LOWER	2	5.26
25	51634MBN671	HOLDER, AXLE	1	12.00
26	90136KA3831	BOLT, STUD, 6X34	4	1.13
27	90301473003	NUT, U, 6MM	4	2.02
28	90544KZ4711	WASHER, SPECIAL	2	2.50
29	91254MBN671	DUST SEAL	2	8.47
30	91256KZ4711	O-RING, 21.8X2.4	2	2.05
31	91256MBN671	SCREW, PAN, 3.5X10	2	1.70
32	91259KZ4711	O-RING, 19.5X1.5	2	1.58
33	91356MBN671	O-RING	2	2.06
34	93500050200A	SCREW, PAN, 5X20	1	0.07
35	94001050000S	NUT, HEX., 5MM	1	0.07
36	963000601600	BOLT, FLANGE, 6X16	2	0.75

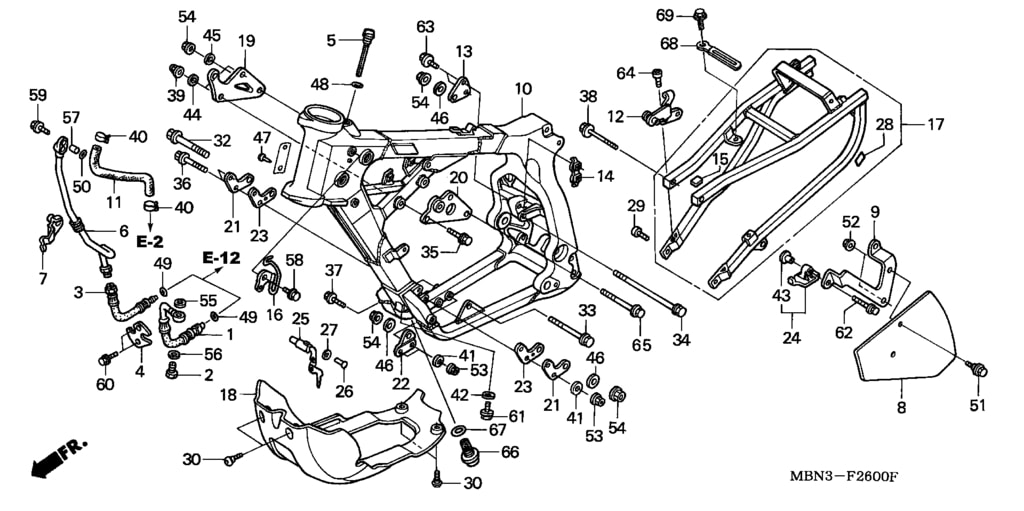

Frame

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	15510MBN670	HOSE A, OIL	1	53.96
2	15517KCY670	BOLT A, OIL HOSE	1	4.38
3	15520MBN670	HOSE B, OIL	1	50.59
4	15630MG3010	PLATE	1	5.69
5	15650MBN670	GAUGE, OIL LEVEL	1	9.61
6	15710MBN670	PIPE COMP., OIL	1	28.67
7	15711MBN670	CLAMPER, OIL PIPE	1	6.29
10	50100MBN670ZA	BODY COMP., FRAME NH146M	1	1032.33
11	50185MN1670	TUBE, BREATHER (7.3X335)	1	8.13
12	50219MBN670	STAY, MUFFLER	1	19.13
13	50224MBN670	PLATE, RR. ENGINE HANGER	1	12.65
14	50225MBN670	NUT, PLATE ENGINE HANGER	1	3.02
15	50232MBN670	PLATE, PROTECTOR	1	2.44
16	50255MBN670	GUIDE, CABLE	1	3.05
17	50300MBN670	BODY ASSY., RR. FRAME	1	177.27
18	50351MBN670ZC	PLATE, SKID NH146M	1	33.08
19	50531MBN670	PLATE, R. ENGINE HANGER UPPER	1	18.05
20	50532MBN670	PLATE, L. ENGINE HANGER UPPER	1	19.56
21	50533MBN670	PLATE, FR. ENGINE HANGER OUTER	2	6.02
22	50534MBN670	PLATE, LOWER ENGINE HANGER	1	4.81
23	50535MBN670	PLATE, R. ENGINE HANGER	2	2.25
24	50912MBN670	SLIDER, CHAIN GUIDE	1	15.15
28	77227MBG300	TAPE B, SINGLE SEAT COWL	1	1.27
29	90102MBN670	BOLT, SOCKET, 8X38	1	1.82
30	90106KCZ000	SCREW, SPECIAL, 6MM	4	1.97
32	90152MBN671	BOLT, FLANGE, 10X109	1	2.66
33	90154MBN670	BOLT, FLANGE, 10X111	1	3.13
34	90156MBN670	BOLT, FLANGE, 10X114	1	2.64
35	90157MBN670	BOLT, FLANGE, 8X72	2	1.48
36	90158MBN670	BOLT, FLANGE, 8X101	2	2.38
37	90159MBN670	BOLT, FLANGE, 8X65	2	1.48
38	90161MBN670	BOLT, FLANGE, 8X115	1	2.46
39	90301KBW940	NUT, CAP, 8MM	2	1.71
40	90311MN1670	CLAMP, TUBE (D12.5)	2	1.25
41	90410SD3660	WASHER, PLAIN, 8MM	4	3.22
42	90442028000	WASHER, SEALING, 8MM	1	0.49
43	90450KG8000	COLLAR, 8MM	1	2.08
44	90451KAF000	WASHER, 8MM	2	0.77
45	90501MT2000	WASHER	1	1.06
46	90529126770	WASHER, 10.5MM	3	1.44
48	91302KE8003	O-RING, 18X3 (ARAI)	1	1.47
49	91302MG2792	GASKET, RUBBER, 10.5MM	2	2.35
50	91305PE2003	O-RING, 9.8X1.9	1	1.06
53	9405008000	NUT, FLANGE, 8MM	4	0.54
54	9405010000	NUT, FLANGE, 10MM	4	0.54
55	9410912000	WASHER, DRAIN PLUG, 12MM	1	0.16
56	9410914000	WASHER, DRAIN PLUG, 14MM	1	0.26
57	9430110160	DOWEL PIN, 10X16	1	0.80
58	960010601200	BOLT, FLANGE, 6X12	1	0.69
59	960010601600	BOLT, FLANGE, 6X16	1	0.69
60	960010601607	BOLT, FLANGE, 6X16	2	0.73
61	963000801800	BOLT, FLANGE, 8X18	1	0.94
62	963000803500	BOLT, FLANGE, 8X35	1	1.17
63	963000804000	BOLT, FLANGE, 8X40	2	1.17
64	967000802810	BOLT, SOCKET, 8X28	1	1.25
65	90101KZ1600	BOLT, FLANGE, 10X75	1	3.08
66	15500KCZ000	STRAINER COMP., OIL	1	19.62
67	91305MN1670	O-RING, 25X3	1	2.06
68	91406166000	CLIP, WIRE	1	1.58
69	963000601200	BOLT, FLANGE, 6X12	1	0.54

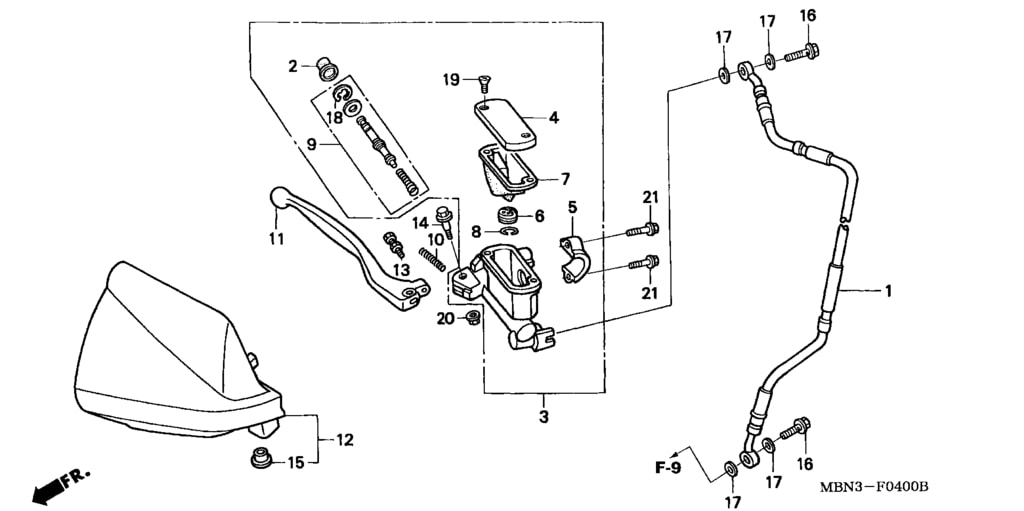

Front Brake (US Version)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	45125MBN671	HOSE, FR. BRAKE	1	86.01
2	45504KN5006	BOOT COMP.	1	4.27
3	45510KCE671	CYLINDER SUB ASSY., FR. BRAKE MASTER	1	146.85
4	45513KCE671	CAP, MASTER CYLINDER	1	10.99
5	45517GW0751	HOLDER, MASTER CYLINDER	1	7.35
6	45518KA3731	SEPARATOR COMP.	1	5.16
7	45520KA3731	DIAPHRAGM	1	4.97
8	45523KA3731	RING	1	1.16
9	45530KCE671	PISTON SET, MASTER CYLINDER	1	32.35
10	53174KN5006	SPRING, BRAKE LEVER	1	1.39
11	53175KCE670	LEVER, R. STEERING HANDLE	1	8.63
12	53180KCZ000ZB	GUARD, R. KNUCKLE R134	1	22.74
13	90111ML3791	BOLT SET, ADJUSTER	1	2.19
14	90113KCZ006	BOLT, LEVER PIVOT	1	1.16
15	90127KCZ000	COLLAR, 6X5.5	1	0.38
16	90145MS9612	BOLT, OIL, 10X22	2	4.96
17	90545300000	WASHER, OIL BOLT	4	1.30
18	90651MA5671	CIRCLIP	1	0.98
19	93600040121G	SCREW, FLAT, 4X12	2	0.39
20	9405006000	NUT, FLANGE, 6MM	1	0.36
21	960010602200	BOLT, FLANGE, 6X22	2	0.88

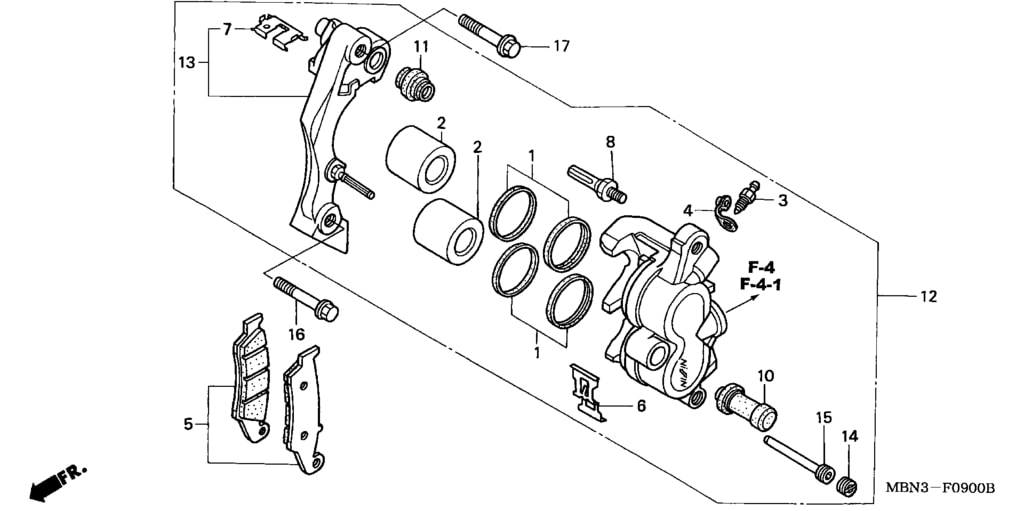

Front Caliper

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	06431MA3405	SEAL SET, PISTON	2	6.0
2	43107MBG006	PISTON, 27X27	2	16.8
3	43352568003	SCREW, BLEEDER (NISSIN)	1	2.57
4	43353461771	CAP, BLEEDER	1	2.54
5	45105MY6405	PAD SET, FR.	1	19.8
6	45108MY1006	SPRING, PAD	1	1.95
7	45112KS6701	RETAINER	1	2.75
8	45131HA5672	BOLT A, PIN	1	6.52
10	45132166016	BOOT, PIN BUSH (NISSIN)	1	1.76
11	45133MA3006	BOOT B	1	2.54
12	45150KZ4J21	CALIPER SUB ASSY., L. FR. BRAKE (NISSIN)	1	151.81
13	45190KZ4J21	BRACKET SUB ASSY., L. FR.	1	53.56
14	45203MG3016	PLUG, PIN	1	2.30
15	45215HA5672	PIN, HANGER	1	1.74
16	90131KBV003	BOLT, FLANGE, 8X32	1	1.88
17	90131MS6900	BOLT, FLANGE, 8X40	1	1.53

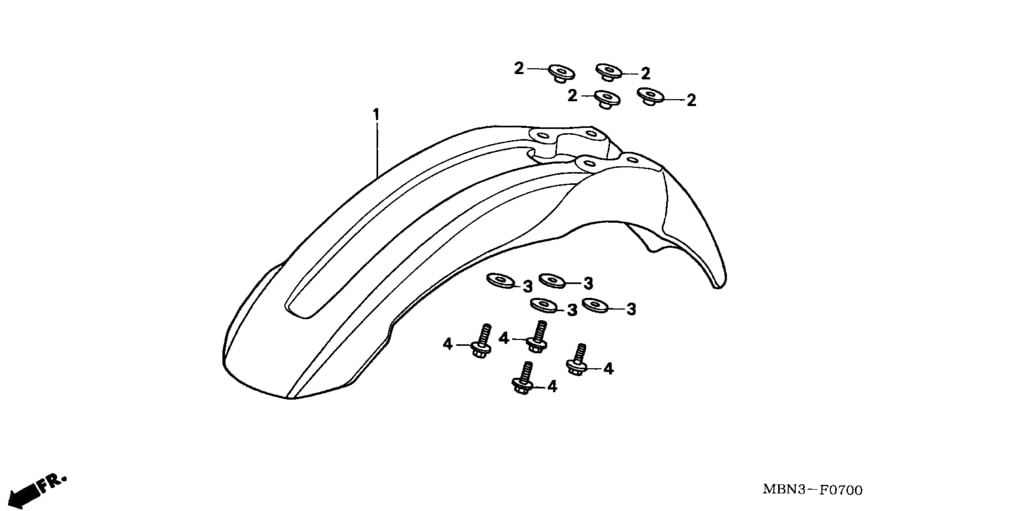

Front Fender

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	61100MBN670ZB	FENDER, FR. R134	1	50.65
2	61104KA4700	COLLAR, FENDER MOUNTING	4	1.82
3	90545292000	WASHER, 6.5X20	4	1.88
4	963000602200	BOLT, FLANGE, 6X22	4	0.94

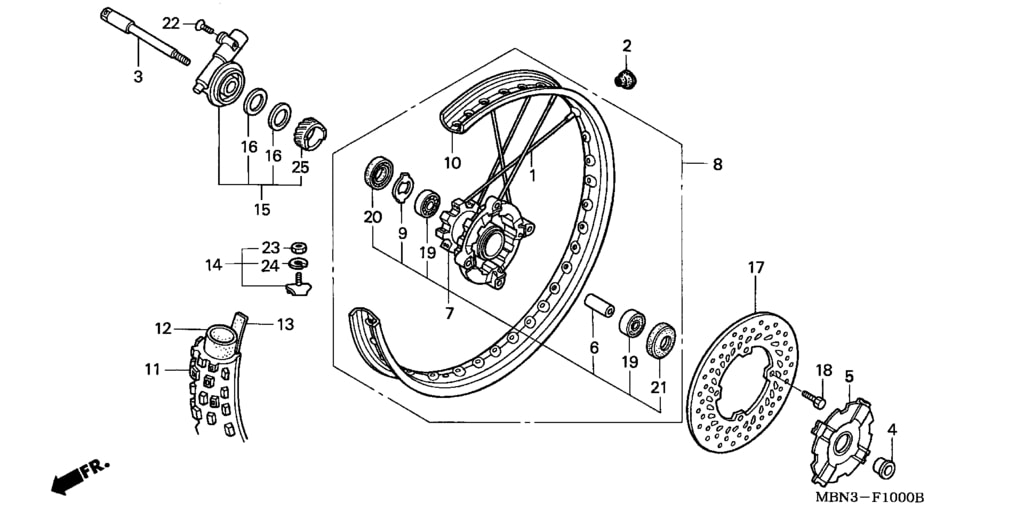

Front Wheel

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	06440KCY670	SPOKE SET, FR. (E10X249)	36	3.33
2	42714KA3710	CAP, VALVE	1	5.05
3	44301MBN670	AXLE, FR. WHEEL	1	33.8
4	44311KAE870	COLLAR, FR. WHEEL	1	7.93
5	44610KW3010ZB	COVER, FR. HUB NH1	1	5.74
6	44620KAE770	COLLAR, FR. AXLE DISTANCE	1	5.34
7	44635MBN670	HUB SUB ASSY., FR.	1	131.31
8	44650MBN670	WHEEL SUB ASSY., FR.	1	391.78
9	44680MA0000	RETAINER, GEAR BOX	1	2.54
10	44701MN1671	RIM, FR. WHEEL	1	153.95
11	44711MBN671	TIRE, FR. (DUNLOP) (80/100-21 D739FAJ 51M)	1	0
12	44712400004	TUBE, TIRE (DUNLOP) (2.75/3.00-21)	1	36.78
13	44713KS6641	FLAP, TIRE (DUNLOP)	1	4.10
14	44715MA0770	STOPPER, BEAD (1.60)	1	21.32
15	44800MBN671	BOX ASSY., SPEEDOMETER GEAR	1	68.78
16	44809402000	WASHER, SPEEDOMETER GEAR	2	0.67
17	45351MBN671	DISK, FR. BRAKE	1	88.55
18	90105KAE870	BOLT, DISK, 6X17	4	1.42
19	91065KA3832	BEARING, RADIAL BALL, 6003-SH2	2	12.45
20	91258410006	DUST SEAL, 40X50X5 (NOK)	1	4.02
20	91258410013	DUST SEAL, 40X50X5 (ARAI)	1	4.02
21	91259KS6831	DUST SEAL, 24X37X7 (NOK)	1	4.52
22	93700050200G	SCREW, OVAL, 5X20	1	0.07
23	94001080000S	NUT, HEX., 8MM	1	0.39
24	9411108000	WASHER, SPRING, 8MM	1	0.15
25	44806KF0000	GEAR, SPEEDOMETER	1	14.47

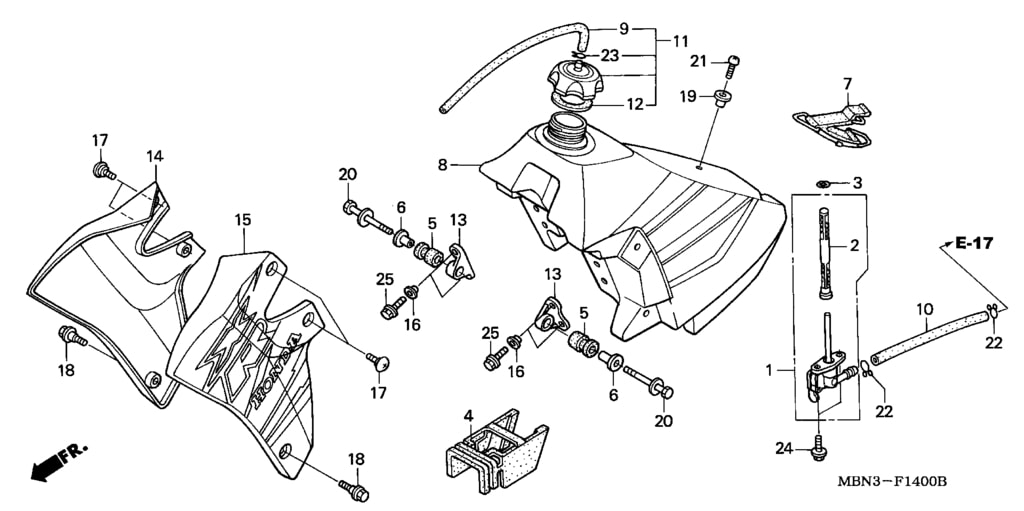

Fuel Tank

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	16950MBN671	COCK ASSY., FUEL	1	41.91
2	16952KCY671	SCREEN SET, FUEL STRAINER	1	11.00
3	16997467000	O-RING, 11.8X3.55	1	2.47
4	17506MBN670	RUBBER, TANK SETTING	1	10.14
5	17508GBF830	RUBBER, TANK MOUNTING	2	2.58
6	17509KS6700	COLLAR, TANK SETTING	2	3.60
7	17516GBF830	BAND, TANK RR.	1	12.60
8	17520MBN830ZA	TANK SET, FUEL	1	259.23
9	17521429000	TUBE, FUEL CAP BREATHER	1	3.81
10	17536MBN670	TUBE C, FUEL	1	1.93
11	17620KT1780	CAP ASSY., FUEL	1	19.49
12	17624KT1780	PACKING, FUEL CAP	1	1.91
13	17634KZ3860	BRACKET, FR. FUEL TANK	2	7.93
14	19071MBN830ZA	SHROUD SET, R. RADIATOR	1	55.91
15	19072MBN830ZA	SHROUD SET, L. RADIATOR	1	55.91
16	84706415000	COLLAR	4	1.53
17	90104KZ3B00	SCREW, SPECIAL, 5MM	4	1.25
18	90111162000	BOLT, FLANGE, 6MM	2	1.53
19	90522KF0000	COLLAR, SIDE COVER	1	0.61
20	934040604000	BOLT-WASHER, 6X40	2	0.68
21	93500060200A	SCREW, PAN, 6X20	1	0.39
22	9500202120	CLIP, TUBE (B12)	2	0.54
23	9500250000	CLIP, TUBE (C9)	1	0.07
24	960010601400	BOLT, FLANGE, 6X14	2	0.69
25	960010601800	BOLT, FLANGE, 6X18	4	0.69

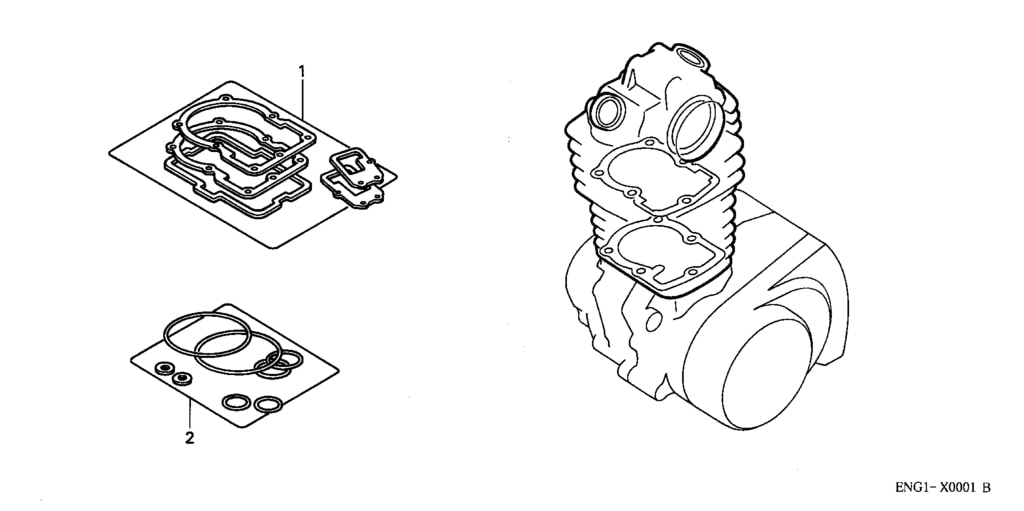

Gasket Set A

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	06113MBN670	GASKET SHEET KIT A	1	46.63
1	12191MBN670	GASKET, CYLINDER	1	5.24
1	12251MBN671	GASKET, CYLINDER HEAD	1	17.67
1	14560KCW851	GASKET, TENSIONER LIFTER	1	2.66
1	18291MN5650	GASKET, EX. PIPE	2	1.63
1	18391MB0891	PACKING, EX.	1	5.65
1	18392MG7750	PACKING, MUFFLER	1	7.51
2	06114MBN670	WASHER O-RING KIT A	1	16.84
2	90441706000	WASHER, SEALING, 6MM	2	0.24
2	90442028000	WASHER, SEALING, 8MM	2	0.49
2	90442397000	WASHER, SEALING, 6MM	1	0.41
2	90452323000	WASHER, SEALING, 5MM	1	0.43
2	91305323000	O-RING, 5.8X1.9	1	2.35
2	91309ML7003	O-RING, 9.6X2.6 (ARAI)	2	1.48
2	91312KE8003	O-RING, 17X3 (ARAI)	1	1.21
2	91351881000	O-RING, 66MM	2	2.34
2	91356169003	O-RING	1	1.61

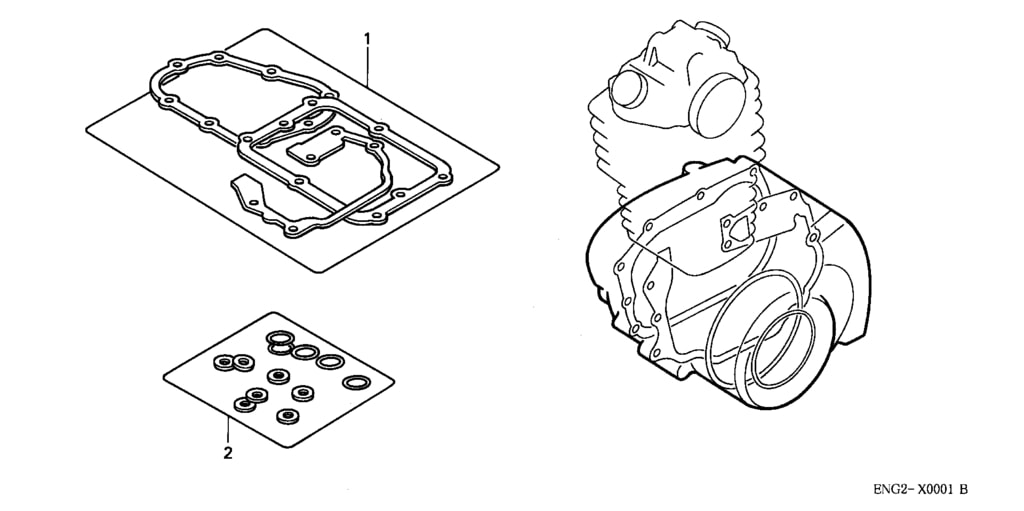

Gasket Set B

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	06115MBN670	GASKET SHEET KIT B	1	29.8
1	11335MBN670	GASKET, OIL FILTER COVER	1	2.07
1	11352MBN671	GASKET, CLUTCH COVER	1	3.91
1	11394MBN670	GASKET, R. COVER	1	7.02
1	11395MBN670	GASKET, L. COVER	1	4.76
1	19226MBN670	GASKET, WATER PUMP COVER	1	3.44
1	91302MG2792	GASKET, RUBBER, 10.5MM	2	2.35
2	06116MBN670	WASHER O-RING KIT B	1	18.13
2	90441706000	WASHER, SEALING, 6MM	1	0.24
2	90463ML7000	WASHER, SEALING, 6.5MM	1	2.01
2	90751GK1003	O-RING, 8.5X1.7	2	0.78
2	91301473003	O-RING, 7X1.7	2	0.70
2	91301GK1003	O-RING, 22X2 (ARAI)	1	1.06
2	91302KE8003	O-RING, 18X3 (ARAI)	1	1.47
2	91302MB0013	O-RING, 32.95X2.62 (ARAI)	1	2.19
2	91303377000	O-RING, 13.8X2.5	1	2.30
2	91319ME5003	O-RING, 5.5X1.4	1	0.92
2	91362VD6000	O-RING (P7)	1	0.56
2	91370461000	O-RING, 11.9X2.2	2	1.62
2	9410912000	WASHER, DRAIN PLUG, 12MM	2	0.16
2	9410914000	WASHER, DRAIN PLUG, 14MM	1	0.26

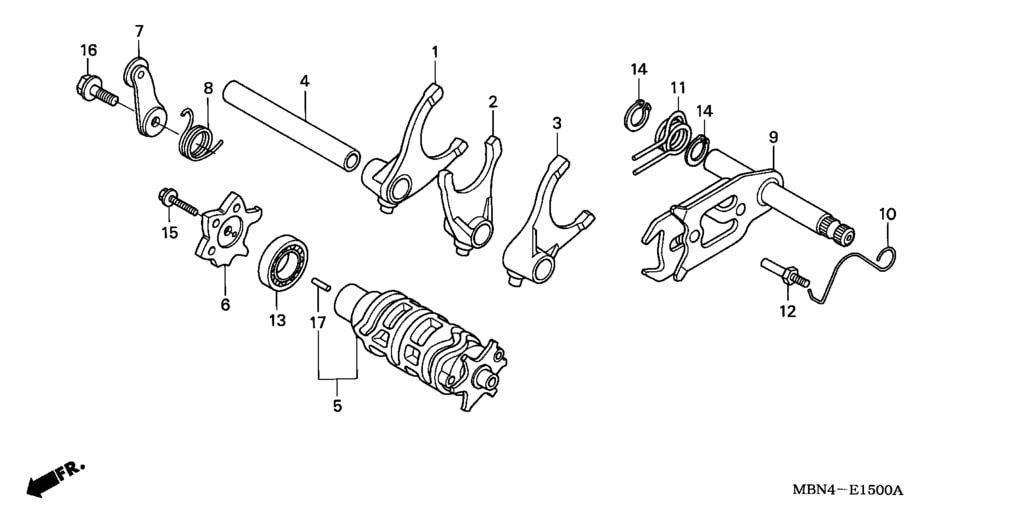

Gear Shift Drum

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	24211MBN670	FORK, R. GEARSHIFT	1	50.59
2	24212MBN670	FORK, CENTER GEARSHIFT	1	51.24
3	24213MBN670	FORK, L. GEARSHIFT	1	40.86
4	24241MBN670	SHAFT, GEARSHIFT FORK GUIDE	1	11.3
5	24300MBN670	DRUM COMP., GEARSHIFT	1	132.83
6	24411MG3020	CAM, GEARSHIFT	1	10.01
7	24430MG3000	STOPPER COMP., GEARSHIFT DRUM	1	8.08
8	24435MBN670	SPRING, GEARSHIFT DRUM STOPPER	1	1.25
9	24610MBN670	SPINDLE COMP., GEARSHIFT	1	49.02
10	24624KA4000	SPRING, GEARSHIFT RESET	1	1.30
11	24651KF0013	SPRING, GEARSHIFT RETURN	1	2.45
12	24652028000	PIN, SHIFT RETURN SPRING	1	2.25
13	91007MN5003	BEARING, RADIAL BALL, 6904 (NTN)	1	8.41
14	9451014000	CIRCLIP, EXTERNAL, 14MM	2	0.39
15	957010602000	BOLT, FLANGE, 6X20	1	0.56
16	957010802000	BOLT, FLANGE, 8X20	1	0.54
17	9622030085	ROLLER, 3X8.5	1	0.39

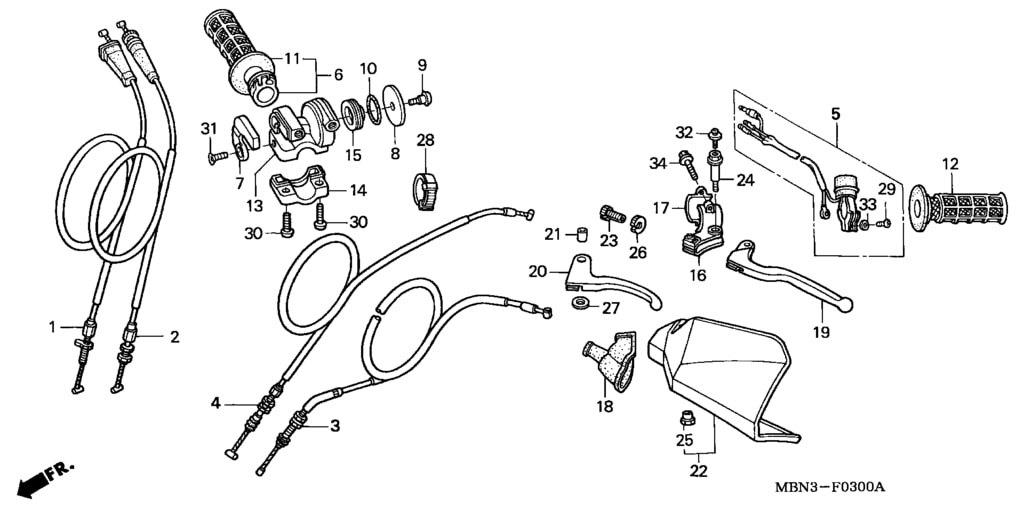

Handlebar (US Version)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	17910MBN670	CABLE COMP. A, THROTTLE	1	18.0
2	17920MBN670	CABLE COMP. B, THROTTLE	1	18.0
3	22870MBN670	CABLE COMP., CLUTCH	1	12.64
4	22890MBN670	CABLE COMP., DECOMPRESSION	1	19.10
5	35130MN1670	SWITCH ASSY., KILL	1	24.52
6	53140429000	GRIP ASSY., THROTTLE	1	13.93
7	53162MN1670	SLIDER, THROTTLE	1	4.27
8	53163MN1670	COVER, THROTTLE PULLEY	1	4.08
9	53164MN1670	SCREW, THROTTLE PULLEY PIVOT	1	1.97
10	53165MN1670	PACKING, THROTTLE PULLEY	1	1.10
11	53165430000	GRIP, R. HANDLE	1	7.76
12	53166430000	GRIP, L. HANDLE	1	7.76
13	53167MN1670	HOUSING, THROTTLE UPPER	1	13.26
14	53168MN1670	HOUSING, THROTTLE UNDER	1	8.49
15	53169MN1670	PULLEY, THROTTLE	1	5.66
16	53172MBN670	BRACKET, L. HANDLE LEVER	1	21.74
17	53174KCE670	HOLDER, L. LEVER BRACKET	1	8.78
18	53177MK5000	COVER, L. HANDLE LEVER	1	6.61
19	53178MAC740	LEVER, L. STEERING HANDLE	1	8.45
20	53180MBN670	LEVER, DECOMPRESSION	1	14.03
21	53181MBN670	COLLAR, DECOMPRESSION LEVER	1	2.16
22	53185MBN670ZB	GUARD, L. KNUCKLE R134	1	21.34
23	53192KA3700	BOLT, CLUTCH WIRE ADJUSTING	1	6.77
24	90112MBN670	BOLT, HANDLE LEVER PIVOT	1	3.93
25	90312GE2000	NUT, FENDER SETTING	1	1.44
26	90321KA4700	NUT, FIXING	1	4.32
27	90501KV6670	WASHER, PLAIN, 7MM	1	0.65
28	90650KW3000	BAND, WIRE	1	1.66
29	93500040121A	SCREW, PAN, 4X12	1	0.07
30	93500060160G	SCREW, PAN, 6X16	2	0.39
31	93700040101G	SCREW, OVAL, 4X10	1	0.07
32	938940401010	SCREW-WASHER, 4X10	1	0.54
33	9411104000	WASHER, SPRING, 4MM	1	0.07
34	960010602000	BOLT, FLANGE, 6X20	2	0.69

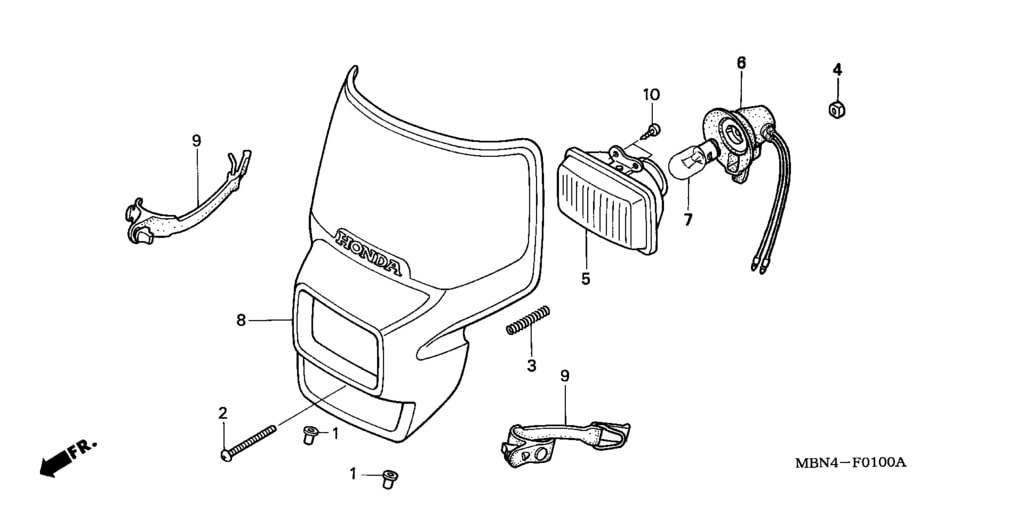

Headlight (US Version)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	19113MB1870	RUBBER, RADIATOR MOUNTING	2	1.58
2	33103KF0670	SCREW, BEAM ADJUSTING	1	1.91
3	33107246003	SPRING, HEADLIGHT BEAM ADJUSTING	1	0.41
4	33117KA2003	NUT, BEAM ADJUSTING (STANLEY)	1	0.91
5	33123KCY670	HEADLIGHT UNIT	1	27.46
6	33130KCY670	SOCKET ASSY., HEADLIGHT	1	9.16
7	34901MN1671	BULB, HEADLIGHT (12V 35W) (STANLEY)	1	2.20
8	61140MBN670ZA	VISOR SET, FR. (WL) R134	1	51.81
9	61309KF0000	BAND, HEADLIGHT CASE	2	11.92
10	9390134210	SCREW, TAPPING, 4X10	2	0.07

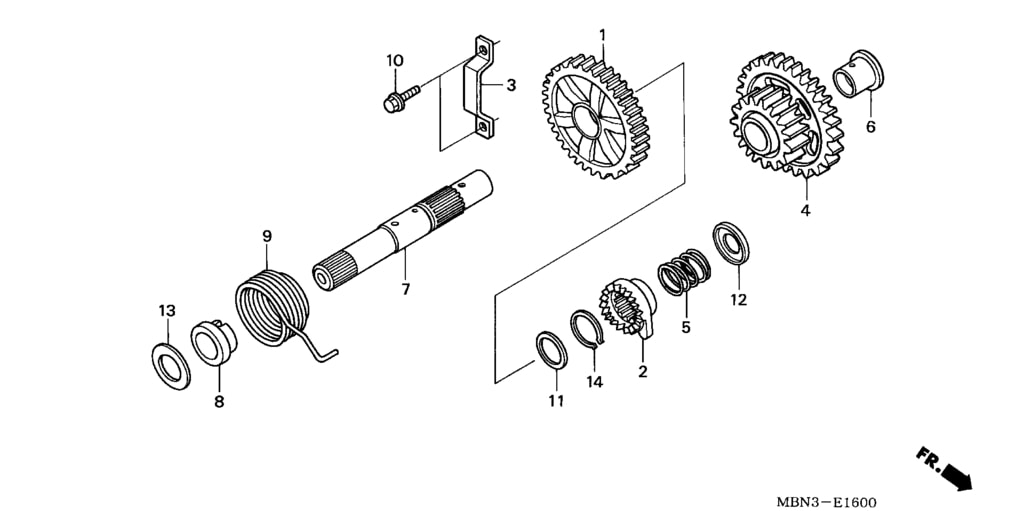

Kick-Start Spindle

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	28211MBN670	PINION, KICK STARTER (35T)	1	46.89
2	28213KCY670	RATCHET, KICK STARTER	1	17.69
3	28215MBN670	PLATE, KICK STOPPER	1	8.48
4	28220MBN670	GEAR, KICK STARTER IDLE (36/24T)	1	70.03
5	28223KK0000	SPRING, KICK STARTER RATCHET	1	1.27
6	28224MBN670	COLLAR, KICK STARTER IDLE GEAR	1	6.02
7	28251MBN670	SPINDLE, KICK STARTER	1	55.52
8	28255KCY670	COLLAR, KICK STARTER	1	2.66
9	28261MBN670	SPRING, KICK STARTER	1	6.54
10	90004GHB630	BOLT, FLANGE, 6X16 (NSHF)	2	0.81
11	90453428000	WASHER, THRUST, 22MM	1	1.66
12	90501KF0000	WASHER, KICK RATCHET SPRING	1	2.64
13	90554700000	WASHER, THRUST, 20MM	1	0.39
14	90601329000	CIRCLIP, 22MM	1	1.31

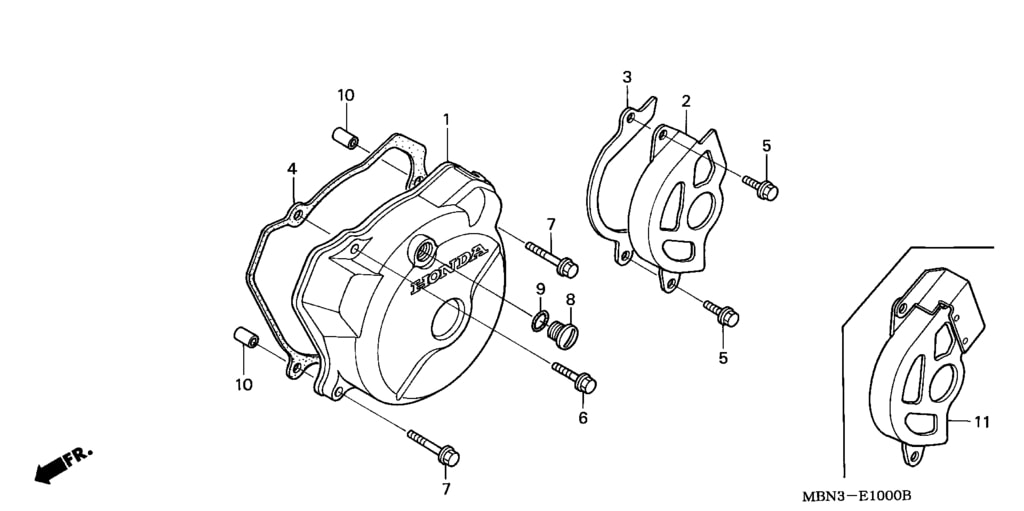

Left Crankcase Cover's (Alternator Side)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	11341MBN670	COVER, L. CRANKCASE	1	66.65
2	11361MBN670	COVER, DRIVE SPROCKET	1	7.52
3	11365MBN670	PLATE, DRIVE CHAIN GUIDE	1	14.66
4	11395MBN670	GASKET, L. COVER	1	4.76
5	90004GHB630	BOLT, FLANGE, 6X16 (NSHF)	2	0.81
6	90004GHB680	BOLT, FLANGE, 6X28 (NSHF)	2	0.85
7	90004GHB700	BOLT, FLANGE, 6X35 (NSHF)	2	1.19
8	90084MN8010	CAP, 14MM	1	5.71
9	91303377000	O-RING, 13.8X2.5	1	2.30
10	9430108140	DOWEL PIN, 8X14	2	0.65

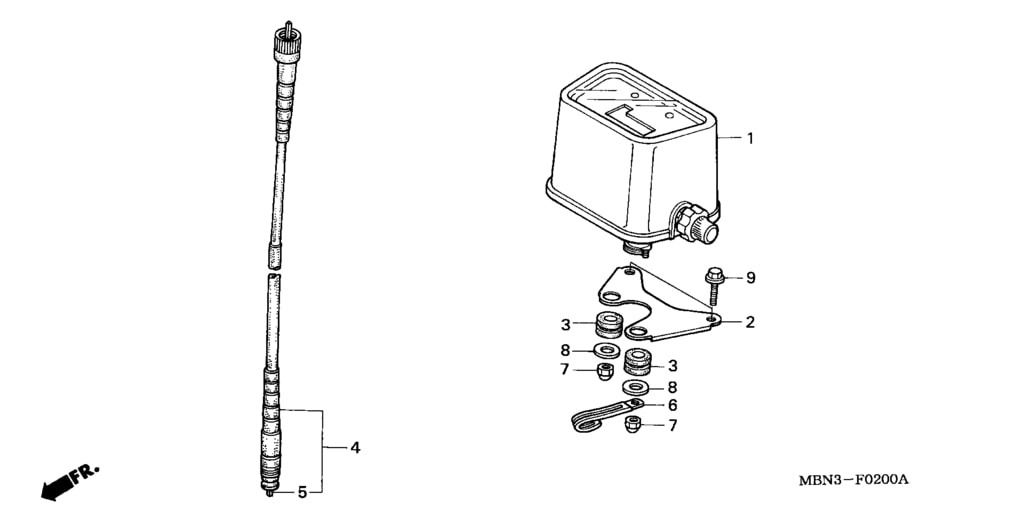

Trip Meter (US Version)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	37200MN1731	METER ASSY., TRIP	1	94.03
2	37212MN1671	STAY, METER SETTING	1	6.57
3	37215MN1670	RUBBER, METER SETTING	2	1.19
4	44830KA2680	CABLE ASSY., SPEEDOMETER	1	13.58
5	44831KA2000	CABLE, INNER	1	2.72
6	91410MN1671	CLIP, 2X70	1	1.43
7	94021050000S	NUT, CAP, 5MM	2	0.39
8	9410305000	WASHER, PLAIN, 5MM	2	0.07
9	963000601207	BOLT, FLANGE, 6X12	2	0.56

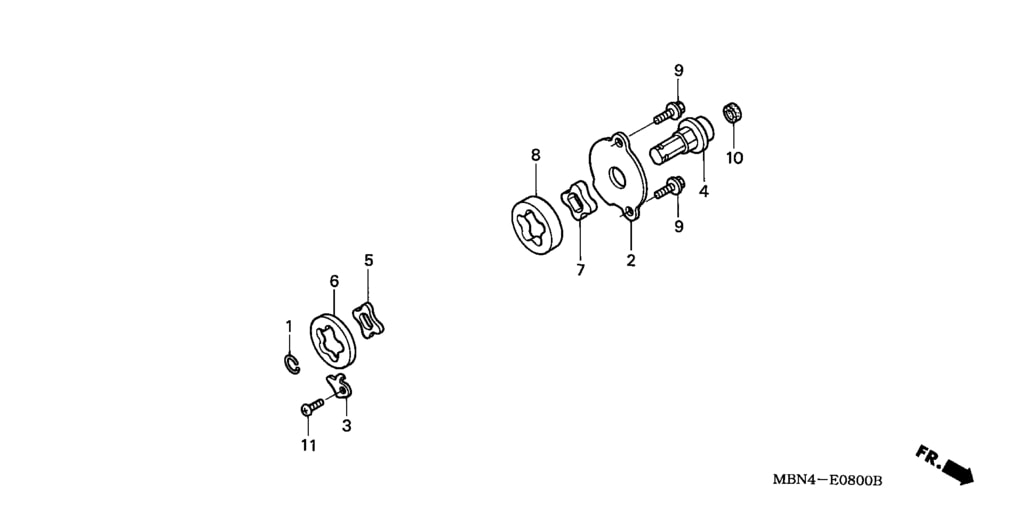

Oil Pump

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	12211250310	CLIP, VALVE GUIDE	1	0.41
2	15102MBN670	PLATE, OIL PUMP	1	1.80
3	15103MBN670	PLATE A, OIL PUMP	1	1.14
4	15111MBN670	SHAFT, OIL PUMP	1	4.76
5	15115MBN671	ROTOR A, OIL PUMP INNER	1	5.25
6	15116MBN671	ROTOR A, OIL PUMP OUTER	1	9.00
7	15121MBN671	ROTOR B, OIL PUMP INNER	1	6.74
8	15122MBN671	ROTOR B, OIL PUMP OUTER	1	9.90
9	90004GHB620	BOLT, FLANGE, 6X14 (NSHF)	2	0.79
10	91231891003	OIL SEAL, 6X11X4	1	0.76
11	93500040081A	SCREW, PAN, 4X8	1	0.07

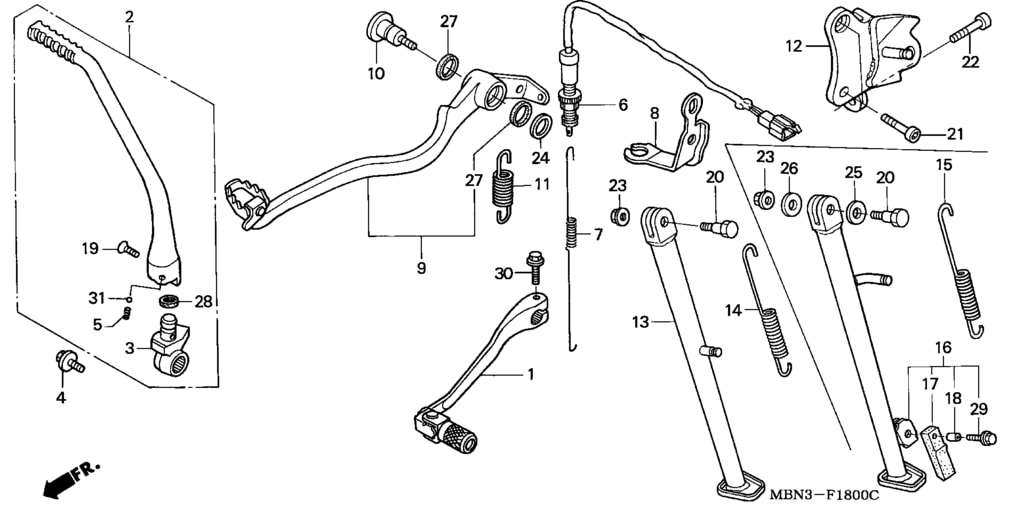

Pedals, Stand & Levers

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	24700MBN670	PEDAL COMP, GEAR CHANGE	1	42.65
2	28300MBN670	ARM ASSY., KICK STARTER	1	81.83
3	28302MBN670	JOINT, KICK ARM	1	39.58
4	28306KAE770	BOLT, KICK JOINT	1	3.51
5	28333124000	SPRING, KICK STARTER STOPPER	1	0.81
9	46510MBN670	PEDAL, RR. BRAKE	1	68.84
10	46513MBN670	SHAFT, BRAKE PIVOT	1	9.08
11	46514MBN670	SPRING, BRAKE PEDAL	1	2.32
12	50150MBN670	BRACKET COMP, SIDE STAND	1	48.62
13	50530MBN670	BAR, SIDE STAND	1	46.22
14	50535KN5670	SPRING, SIDE STAND	1	3.25
19	90101KCY760	SCREW, OVAL, 6X28	1	0.72
20	90108KV6000	SCREW, SIDE STAND PIVOT	1	3.81
21	90113MBN670	BOLT, SOCKET, 8X27	2	1.82
22	90114MBN670	BOLT, SOCKET, 10X35	1	3.30
23	90304GE8003	NUT, U, 10MM	1	2.15
24	90436VA3000	WASHER, SPECIAL (22X8.5X2)	1	1.84
27	91251444000	DUST SEAL, 15X20X2.5	2	2.09
28	91303KA3731	DUST SEAL, 19X25X4.1 (NOK)	1	2.23
30	960010602200	BOLT, FLANGE, 6X22	1	0.88
31	9621108000	BALL, STEEL, #8 (1/4)	1	0.39

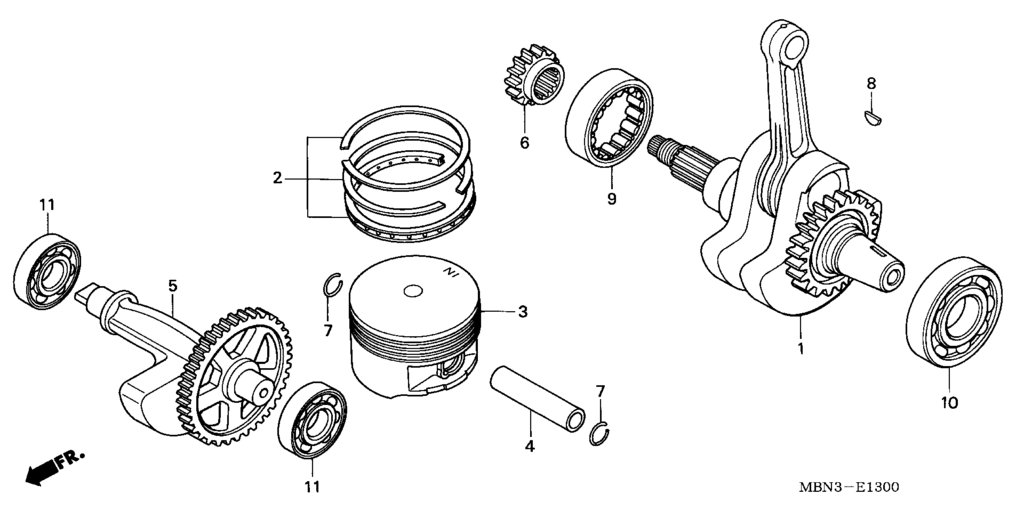

Piston & Crank

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	13000MBN670	CRANKSHAFT COMP	1	549.95
2	13011MBN305	RING SET, PISTON (STD.)(RIKEN)	1	37.59
3	13101MBN670	PISTON (STD.)	1	55.68
4	13111MBN670	PIN, PISTON	1	15.45
5	13420MBN670	SHAFT COMP., BALANCER	1	126.89
6	14312MAN620	SPROCKET, TIMING (38T)	1	27.57
7	90602MBN670	CLIP, PISTON PIN, 23MM	2	0.40
8	90701KAS900	KEY, SPECIAL WOODRUFF, 25X18	1	1.37
9	91001MBN671	BEARING, ROLLER	1	42.49
10	91002MN9003	BEARING, RADIAL BALL, 6308 (TOYO)L	1	38.60
11	91005MK4701	BEARING, RADIAL BALL, 16X44X13 (TOYO)	2	12.35

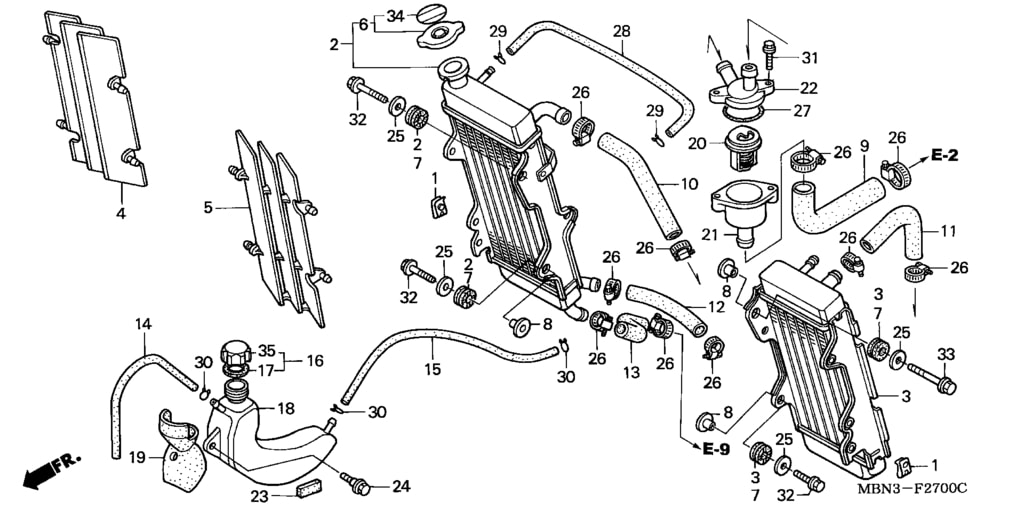

Radiators

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	18354KS6000	NUT, CHAMBER SPRING	2	1.85
2	19010MBN671	RADIATOR, R.	1	206.21
3	19015MBN670	RADIATOR, L.	1	206.21
4	19033MBN670	GRILLE, R. RADIATOR	1	33.82
5	19034MBN670	GRILLE, L. RADIATOR	1	33.82
6	19045MV9921	CAP COMP., RADIATOR	1	18.97
7	19051KA3830	RUBBER, RADIATOR MOUNTING	4	2.35
8	19052MAC680	COLLAR, RADIATOR MOUNTING	3	1.94
9	19061MBN670	HOSE, THERMOSTAT	1	3.87
10	19062MBN670	HOSE, R. UPPER	1	3.46
11	19063MBN670	HOSE, L. UPPER	1	2.61
12	19064MBN670	HOSE, R. LOWER	1	2.88
13	19065MBN670	HOSE, WATER PUMP	1	2.30
14	19104MBN670	TUBE, RESERVE TANK BREATHER	1	2.45
15	19105MBN670	TUBE, RADIATOR BREATHER	1	3.41
16	19105MG8000	CAP ASSY., RESERVE TANK	1	5.34
17	19107MG8000	PACKING, RESERVE TANK	1	0.70
18	19110MBN670	TANK, RADIATOR RESERVE	1	29.49
19	19111MBN670	GUARD, RESERVE TANK	1	13.73
20	19300ML7003	THERMOSTAT ASSY.	1	31.44
21	19311MBN670	CASE, THERMOSTAT	1	33.91
22	19315MBN670	COVER, THERMOSTAT	1	27.96
23	81215MZ0700	SEAL, SADDLEBAG	1	0.52
24	90111162000	BOLT, FLANGE, 6MM	1	1.53
25	90403KA3830	WASHER, RADIATOR MOUNTING	4	0.72
26	90670GHB650	CLAMP, WATER HOSE	10	1.81
27	91311KE8000	O-RING, 47.5X2	1	1.85
28	950017523040	TUBE, FUEL, 7.3X230 (95001-75001-60M)	1	3.13
29	9500201130	CLIP, TUBE (A13)	2	1.56
30	9500202100	CLIP, TUBE (B10)	3	0.54
31	960010602007	BOLT, FLANGE, 6X20	2	0.69
32	90005KGB610	BOLT, FLANGE, 6X26.5	3	1.02
33	90005KGB610	BOLT, FLANGE, 6X26.5	1	1.02
34	19055MV9881	SEAL, RADIATOR CAP	1	3.81
34	19055MV9921	SEAL, RADIATOR CAP (ENGLISH)	1	3.55
35	19104ME9000	CAP, RESERVE TANK	1	6.44

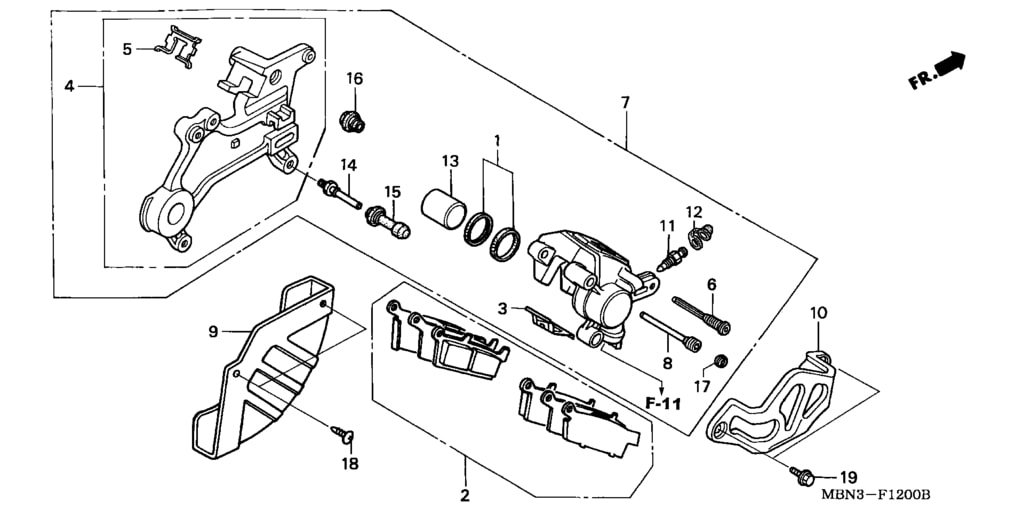

Rear Caliper

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	06431MA3405	SEAL SET, PISTON	1	6.00
2	43105KZ1405	PAD SET, RR. BRAKE	1	19.8
3	43108MY6671	SPRING, PAD	1	3.40
4	43110KZ3B01	BRACKET COMP., RR.	1	73.7
5	43112KS6701	RETAINER	1	2.61
6	43131KW3006	BOLT, PIN	1	2.35
7	43150KZ3B01	CALIPER SUB ASSY., RR. BRAKE (NISSIN)	1	189.07
8	43215ML3911	PIN, HANGER	1	4.44
9	43330KS6700	COVER, RR. DISK	1	12.70
10	43340KZ3B00ZA	GUARD, RR. CALIPER TNATURAL	1	13.39
11	43352568003	SCREW, BLEEDER (NISSIN)	1	2.57
12	43353461771	CAP, BLEEDER	1	2.54
13	45107ML4006	PISTON	1	18.14
14	45131166016	BOLT, PIN	1	1.20
15	45132166016	BOOT, PIN BUSH (NISSIN)	1	1.76
16	45133MA3006	BOOT B	1	2.54
17	45203MG3016	PLUG, PIN	1	2.30
18	90101KS6700	SCREW, SPECIAL, 6X10	2	0.91
19	963000601200	BOLT, FLANGE, 6X12	2	0.54

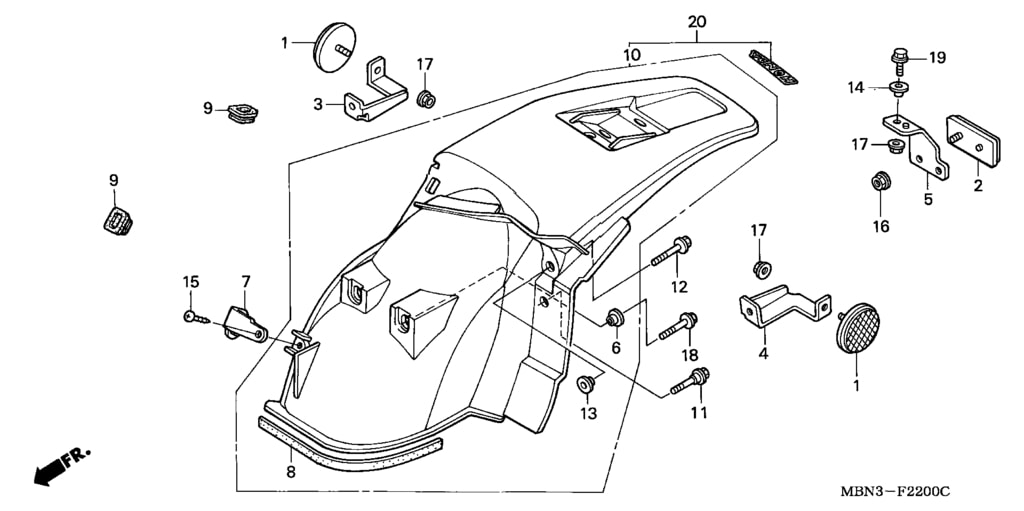

Rear Fender (US Version)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	33741HB9641	REFLECTOR, RR. REFLEX	2	11.65
2	33741MS6921	REFLECTOR, REFLEX	1	15.50
3	33751MBN720	STAY, R. REFLECTOR	1	4.54
4	33752MBN720	STAY, L. REFLECTOR	1	4.54
5	33753MBN720	STAY, RR. REFLECTOR	1	2.38
6	44125MN5000	COLLAR, FR. WHEEL COVER	2	2.33
7	80105MBN670	STAY, RESERVE TANK	1	1.31
8	80106MBN670	RUBBER, SEALING	1	1.80
9	80115MBN670	GROMMET, CORD	2	0.74
11	90106MM9000	BOLT, FR. FENDER FIXING	1	1.56
12	90118MV8901	BOLT, FLANGE SOCKET, 6X25	2	0.59
13	90505MBN670	COLLAR, 6.2X6.8	2	1.64
14	90554240000	WASHER B	1	0.40
15	9391125220	SCREW, TAPPING, 5X12	1	0.29
16	9405005000	NUT, FLANGE, 5MM	1	0.39
17	9405006000	NUT, FLANGE, 6MM	3	0.36
18	957010602000	BOLT, FLANGE, 6X20	2	0.56
19	963000601200	BOLT, FLANGE, 6X12	1	0.54
20	80120MBN830ZA	FENDER SET, RR.	1	90.22

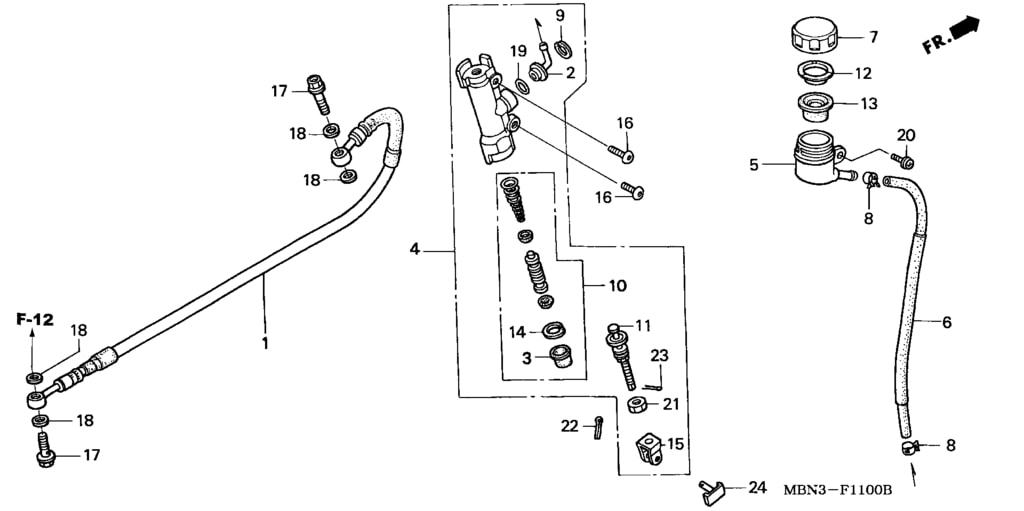

Rear Master Cylinder

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	43310MBN671	HOSE, RR. BRAKE	1	43.17
2	43503KS6701	CONNECTOR, MASTER CYLINDER	1	5.18
3	43504MB2006	BOOT COMP.	1	3.58
4	43510MBN671	CYLINDER SUB ASSY., RR. MASTER	1	7.15
5	43511KS6702	CUP COMP., MASTER CYLINDER OIL	1	9.90
6	43512KBA921	HOSE, MASTER CYLINDER (NISSIN)	1	8.10
7	43513KS6701	CAP, MASTER CYLINDER	1	5.22
8	43514KS6701	CLAMP, MASTER CYLINDER OIL HOSE	2	2.68
9	43517KS6701	CIRCLIP, RR. MASTER CYLINDER	1	1.11
10	43520MJ6305	PISTON SET, MASTER CYLINDER	1	37.82
11	43530MV9006	ROD COMP., PUSH	1	16.12
12	45518GM9711	PLATE, DIAPHRAGM	1	2.85
13	45520GM9711	DIAPHRAGM	1	3.55
14	46182500013	CIRCLIP	1	1.13
15	46504MT8006	JOINT, BRAKE ROD	1	3.89
16	90114MAC780	BOLT, FR. DISK COVER	2	1.02
17	90145MS9612	BOLT, OIL, 10X22	2	4.96
18	90545300000	WASHER, OIL BOLT	4	1.30
19	91212422006	O-RING, 14.8X2.4	1	2.27
20	938910601408	SCREW-WASHER, 6X14	1	0.62
21	94002080000S	NUT, HEX., 8MM	1	0.39
22	9420120120	PIN, SPLIT, 2.0X12	1	0.15
23	9430520102	PIN, SPRING, 2X10	1	0.73
24	9501554000	PIN D, JOINT	1	1.58

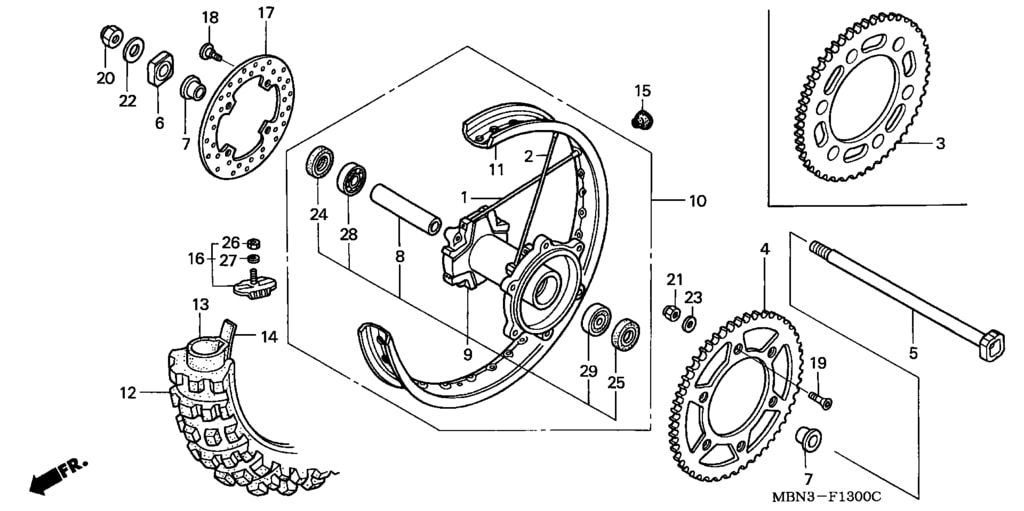

Rear Wheel

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	06421MBN670	SPOKE SET B, RR.	16	1.97
2	06420MBN670	SPOKE SET A, RR.	16	1.97
4	41201MBN670	SPROCKET, FINAL DRIVEN (48T)	1	58.87
5	42301KZ3B00	AXLE, RR. WHEEL	1	46.24
6	42306KZ3B00	COLLAR, RR. AXLE	1	9.07
7	42313MBN670	COLLAR, RR. WHEEL SIDE	2	13.37
8	42620MBN670	COLLAR, RR. WHEEL DISTANCE	1	9.74
9	42635MBN671	HUB SUB ASSY., RR.	1	215.55
10	42650MBN671	WHEEL SUB ASSY., RR.	1	503.06
11	42701MN1681	RIM, RR. WHEEL	1	271.01
12	42711ML3911	TIRE, RR. (DUNLOP) (110/100-18 64M K695)	1	312.28
13	42712KS7641	TUBE, TIRE (DUNLOP) (120/90-18)	1	30.28
14	42713KS6641	FLAP, TIRE (DUNLOP)	1	4.10
15	42714KA3710	CAP, VALVE	1	5.05
16	42715MA0770	STOPPER, BEAD (2.15)	1	26.1
17	43351MBN671	DISK, RR. BRAKE	1	80.33
18	90105KAE870	BOLT, DISK, 6X17	4	1.42
19	90125KA4000	SCREW, FLAT, 8X31	6	1.53
20	90305KZ4891	NUT, U, 18MM	1	6.04
21	90309ML3791	NUT, U, 8MM	6	2.25
22	90401KZ4890	WASHER, 18X32X2	1	1.97
23	90465MC4000	WASHER, 8MM	6	2.02
24	91257230003	OIL SEAL, 28X42X7 (ARAI)	1	4.06
25	91252MC4003	OIL SEAL, 28X47.2X7 (ARAI)	1	7.70
26	94001080000S	NUT, HEX., 8MM	1	0.39
27	9411108000	WASHER, SPRING, 8MM	1	0.15
28	961406004010	BEARING, RADIAL BALL, 6004U	1	16.36
29	961406204010	BEARING, RADIAL BALL, 6204U	1	10.15

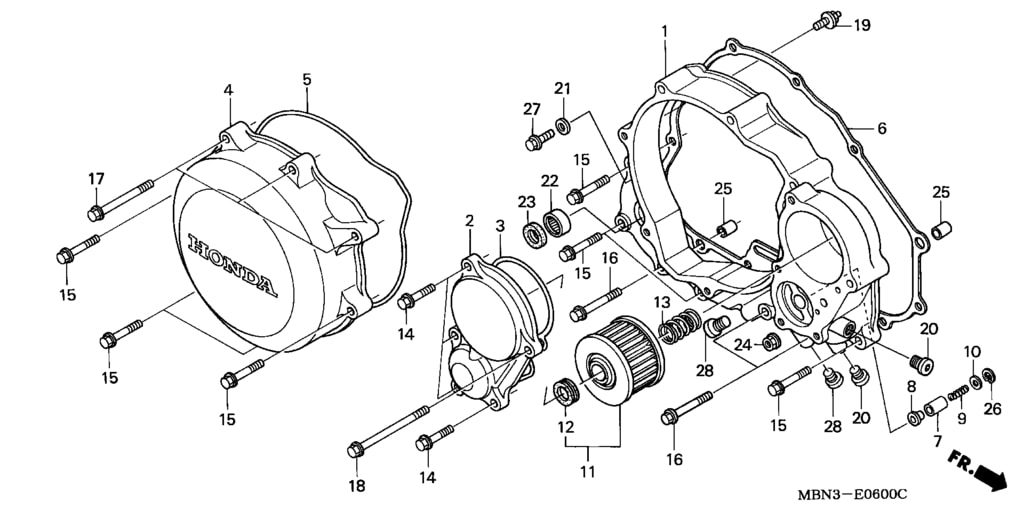

Right Cover (Clutch Side)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	11330MBN670	COVER COMP. R. CRANKCASE	1	123.46
2	11333MBN670	COVER COMP., OIL FILTER	1	30.22
3	11335MBN670	GASKET, OIL FILTER COVER	1	2.07
4	11351MBN670	COVER, CLUTCH	1	32.13
5	11352MBN671	GASKET, CLUTCH COVER	1	3.91
6	11394MBN670	GASKET, R. COVER	1	7.02
7	15106MG3000	VALVE, OIL LEAK STOPPER	1	6.74
8	15107MG3000	SEAL, OIL LEAK STOPPER	1	1.80
9	15108MG3000	SPRING, OIL LEAK STOPPER	1	1.61
10	15111MG3000	SEAT B, SPRING	1	0.65
11	15412KF0020	ELEMENT, OIL FILTER	1	4.09
12	15413MC8000	RUBBER, FILTER	1	1.25
13	15414KF0000	SPRING, OIL FILTER ELEMENT	1	1.80
14	90004GHB650	BOLT, FLANGE, 6X20 (NSHF)	4	0.99
15	90004GHB670	BOLT, FLANGE, 6X25 (NSHF)	8	0.94
16	90004GHB690	BOLT, FLANGE, 6X32 (NSHF)	3	0.89
17	90004GHB750	BOLT, FLANGE, 6X60 (NSHF)	3	2.25
18	90004GHB800	BOLT, FLANGE, 6X85 (NSHF)	1	1.02
19	90041MBN670	BOLT, SPECIAL, 6MM	1	3.61
20	90083PL3000	BOLT, SEALING, 10MM	2	2.39
21	90441706000	WASHER, SEALING, 6MM	1	0.24
22	91106KF0008	BEARING, NEEDLE, 20X26X12	1	8.95
23	91204KF0003	OIL SEAL, 20X28X5	1	2.97
24	9405006080	NUT, FLANGE, 6MM	1	1.35
25	9430108140	DOWEL PIN, 8X14	2	0.65
26	9452011000	CIRCLIP, INTERNAL, 11MM	1	0.28
27	957010601400	BOLT, FLANGE, 6X14	1	0.54
28	12205KE8300	BOLT, SEALING, 12MM	2	4.71

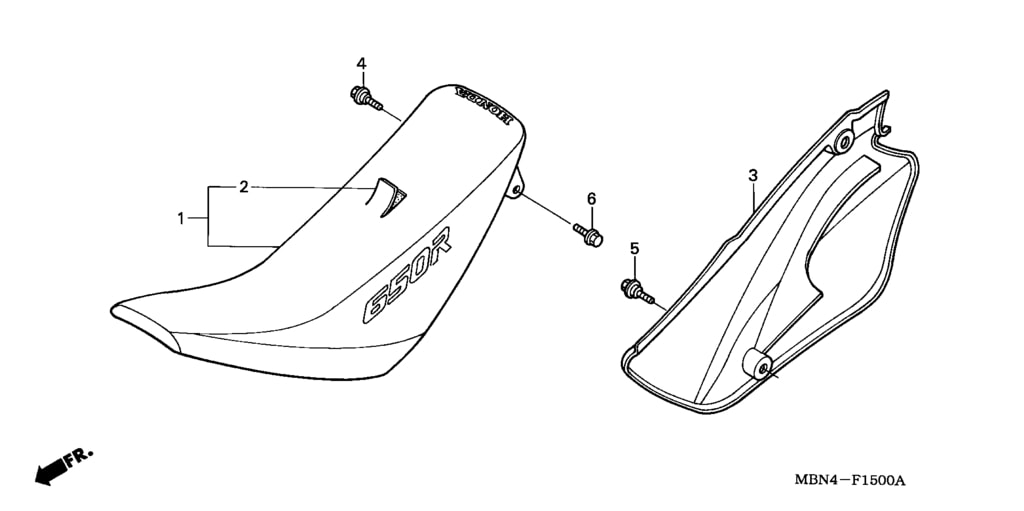

Seat & Right Panel

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	77200MBN830	SEAT COMP.	1	255.8
2	77201MBN830	LEATHER COMP	1	85.33
3	83510MBN670ZA	COVER, R. SIDE NH196	1	47.89
4	90106MBN670	BOLT, FLANGE, 8X21	1	1.63
5	90106MM9000	BOLT, FR. FENDER FIXING	1	1.56
6	963000801600	BOLT, FLANGE, 8X16	1	0.94

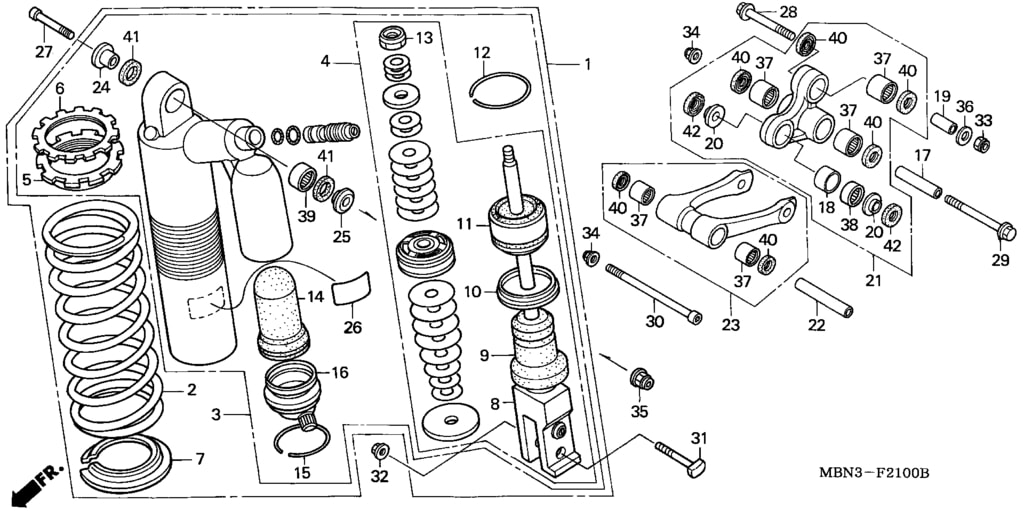

Rear Shock Unit

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	52400MBN671	CUSHION ASSY., RR.	1	450.15
2	52401MBN671	SPRING, RR. CUSHION	1	105.3
3	52410MBN671	DAMPER COMP., RR.	1	477.77
4	52421MBN671	ROD COMP., PISTON	1	298.36
5	52422KS6701	SEAT, UPPER SPRING	1	14.60
6	52423KS6701	NUT, ADJUSTER	1	8.31
7	52424KS6701	SEAT, SPRING LOWER	1	5.49
8	52426MBN671	ROD COMP.	1	184.68
9	52427KZ4901	RUBBER, BUMPER	1	5.51
10	52428MBN671	CAP, CASE	1	8.65
11	52429MBN671	CASE COMP., ROD GUIDE	1	10.64
12	52435ML3791	RING, SNAP (KAYABA)	1	1.59
13	52438KA3731	NUT, HEX., 12MM	1	1.21
14	52451KZ4003	BLADDER	1	8.62
15	52452KZ4003	RING, SNAP	1	1.66
16	52453MBN671	CAP, BLADDER	1	24.53
17	52462MBN670	COLLAR B, CUSHION ARM	1	6.58
18	52463KZ4B00	COLLAR D, CUSHION	1	1.32
19	52464GBF830	COLLAR, CUSHION ARM PIVOT	1	5.41
20	52464KZ4B00	COLLAR D, CUSHION SIDE	2	1.44
21	52465MBN670	ARM SET, CUSHION	1	152.98
22	52473MBN670	COLLAR, CUSHION CONNECTING ROD	1	6.88
23	52475MBN670	ROD SUB ASSY., CUSHION CONNECTING	1	114.47
24	52486GBF830	COLLAR A, CUSHION UPPER	1	2.35
25	52487GBF830	COLLAR B, CUSHION UPPER	1	1.99
26	87516KZ1600	LABEL, RR. DAMPER WARNING	1	3.25
26	87516KZ1881	LABEL, RR. DAMPER WARNING FR	1	2.64
27	90126MBN670	BOLT, SOCKET, 10X48	1	1.48
28	90127MBN670	BOLT, FLANGE, 12X81	1	2.64
29	90128MBN670	BOLT, FLANGE, 12X99	1	2.64
30	90129MBN670	BOLT, SOCKET, 12X104	1	2.97
31	90153KZ4710	BOLT, CUSHION LOWER, 10X43.5	1	2.02
32	90304GE8003	NUT, U, 10MM	1	2.15
33	90306KBP901	NUT, U, 12MM	1	2.84
34	90306KF0003	NUT, FLANGE, 12MM	2	2.45
35	90306KZ4711	NUT, U, 10MM	1	1.58
36	90504SF4000	WASHER, PLAIN, 12MM	1	1.85
37	91072MY1005	BEARING, NEEDLE, 20X26X20	5	17.75
38	91074KZ4B01	BEARING, NEEDLE, 19X26X15	1	15.22
39	91077GS2702	BEARING, NEEDLE, 16X22X12	1	16.27
40	91254KS6003	DUST SEAL, 20X26X4.5 (ARAI)	6	3.87
41	91351GS2701	DUST SEAL, RR. CUSHION UPPER	2	1.68
42	91351KZ4B01	DUST SEAL, 17X26X3	2	1.87

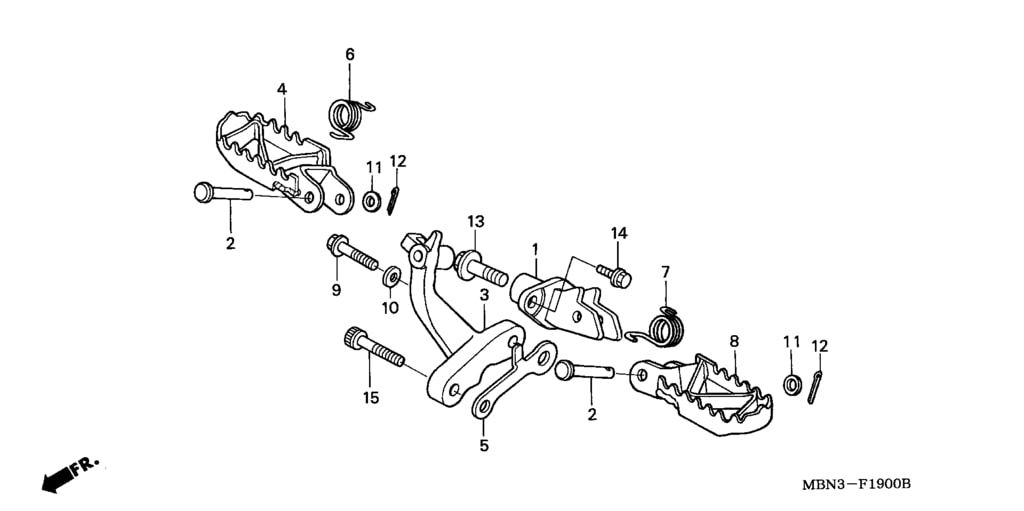

Step (Foot Rests)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	50152MBN670	BRACKET COMP., L. STEP	1	34.51
2	50603033010	PIN, STEP BAR JOINT	2	0.87
3	50615MBN670ZA	BRACKET, R. STEP	1	70.58
4	50616KAE730	STEP COMP., R.	1	25.06
5	50616MBN670	PLATE, R. STEP SETTING	1	3.96
6	50617MN1671	SPRING, R. STEP RETURN	1	2.33
7	50618MBN670	SPRING, L. STEP RETURN	1	2.26
8	50642KAE730	STEP COMP., L.	1	25.06
9	90211KF0770	BOLT, FLANGE, 10X45	1	1.76
10	90528023000	WASHER, 12.5X20	1	1.39
11	9410208000	WASHER, PLAIN, 8MM	2	0.05
12	9420120150	PIN, SPLIT, 2.0X15	2	0.07
13	958011002200	BOLT, FLANGE, 10X22	1	0.92
14	960010601402	BOLT, FLANGE, 6X14	1	1.06
15	90181MN0000	BOLT, SOCKET, 10X45	1	2.55

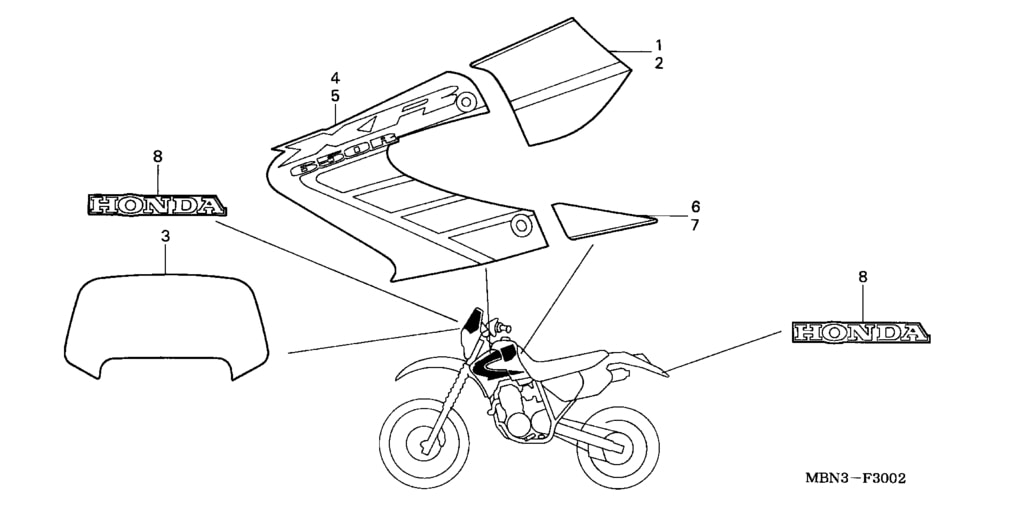

Stripes (2002 Decal's)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	87122MBN830ZA	STRIPE, R. FUEL TANK	1	16.65
2	87123MBN830ZA	STRIPE, L. FUEL TANK	1	16.65
3	87124MBN670	STRIPE, FR. VISOR	1	19.98
4	87126MBN830ZA	STRIPE, R. RADIATOR SHROUD	1	19.98
5	87127MBN830ZA	STRIPE, L. RADIATOR SHROUD	1	19.98
6	87128MBN830ZA	STRIPE B, R. FUEL TANK	1	7.15
7	87129MBN830ZA	STRIPE B, L. FUEL TANK	1	7.15
8	87130MBN830ZA	MARK (HONDA)	1	3.37

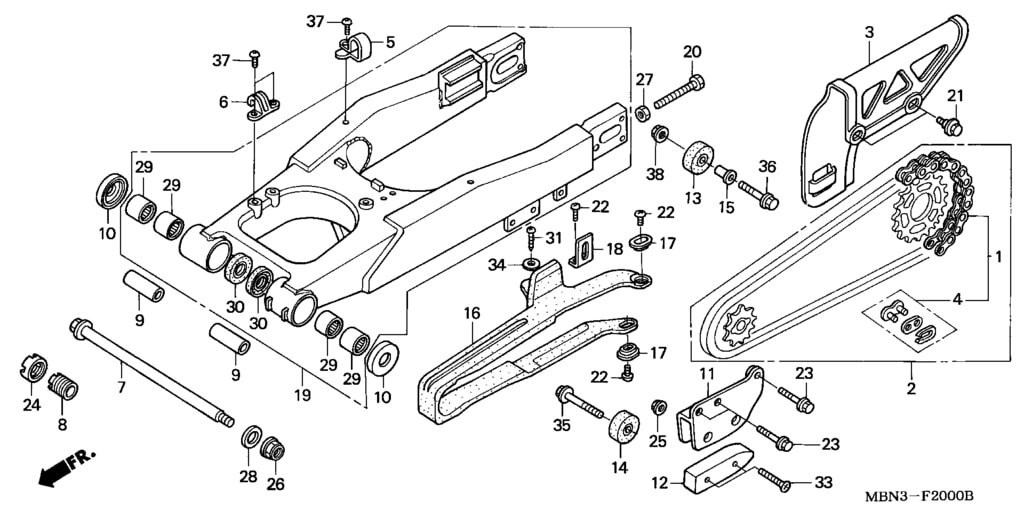

Swing Arm

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	06405MBNP00	CHAIN SET, DRIVE DID520VM-110ZB	1	146.55
1	06405MBNP10	CHAIN SET, DRIVE RK520KZ0-110LJFZ	1	146.55
4	40535MBN671	JOINT, DRIVE CHAIN (DAIDO)	1	6.15
4	40535MBN672	JOINT, DRIVE CHAIN (RK EXCEL)	1	6.15
5	43468KFB000	GUIDE, BRAKE HOSE	1	2.54
6	43468KS6700	GUIDE, RR. BRAKE HOSE	1	5.22
7	52101MBN670	BOLT, SWINGARM PIVOT	1	15.8
8	52109MBN670	BOLT, PIVOT ADJUSTING	1	9.54
9	52141MBN670	COLLAR, PIVOT	2	5.64
10	52145MBN671	CAP, DUST SEAL	2	6.14
11	52146KT1770	GUIDE, CHAIN	1	11.36
12	52147KN5005	SLIDER, CHAIN GUIDE	1	9.52
13	52158HC0000	ROLLER, CHAIN	1	2.91
14	52158KA3831	ROLLER COMP., CHAIN TENSIONER	1	23.62
15	52159467000	COLLAR, CHAIN ROLLER	1	3.81
16	52170MBN670	SLIDER, CHAIN	1	32.76
17	52171KR6000	WASHER, CHAIN SLIDER	2	0.47
18	52175MBN670	PLATE, CHAIN SLIDER	1	1.96
19	52200MBN670	SWINGARM SUB ASSY.	1	594.52
20	90106KS6700	BOLT, HEX., 8X49	2	1.85
22	90115KV3700	SCREW, PAN, 5X8	3	0.89
23	90181HB9770	BOLT, FLANGE, 6X16	3	1.08
24	90301MBN670	NUT, LOCK	1	3.55
25	90301473003	NUT, U, 6MM	2	2.02
26	90305KZ4891	NUT, U, 18MM	1	6.04
27	90309357000	NUT, HEX., 8MM	2	3.34
28	90401KZ4890	WASHER, 18X32X2	1	1.97
29	91071MBN671	BEARING, NEEDLE	4	16.26
30	91262KZ3731	DUST SEAL, 25X32X4	2	5.30
31	93500050120G	SCREW, PAN, 5X12	1	0.07
33	93600060450A	SCREW, FLAT, 6X45	2	0.62
34	9410305700	WASHER, PLAIN, 5MM	1	0.07
35	964000804000	BOLT, FLANGE, 8X40	1	1.11
36	964000804507	BOLT, FLANGE, 8X45	1	1.17
37	93500050100A	SCREW, PAN, 5X10	3	0.07
38	9405008000	NUT, FLANGE, 8MM	1	0.54

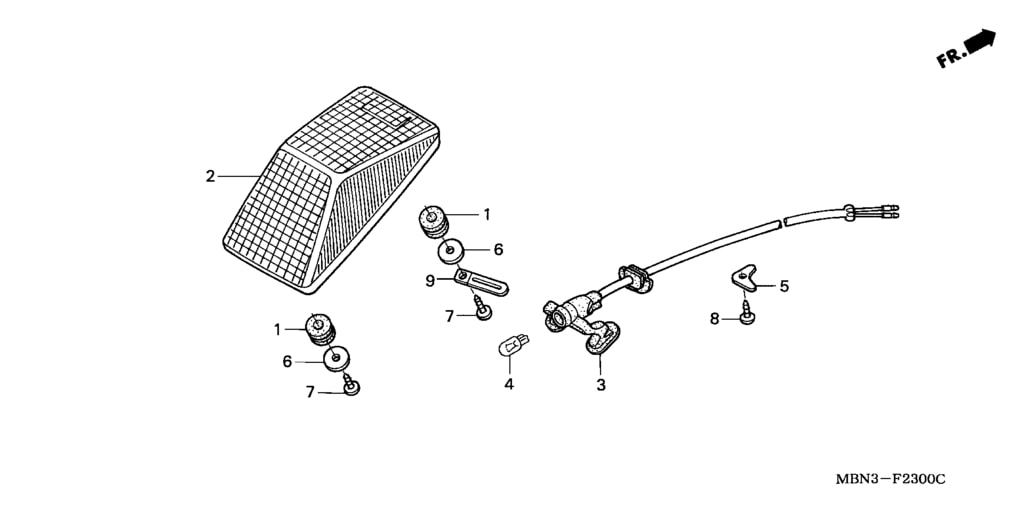

Tail Light

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	17622GB7900	RUBBER, CUSHION	2	1.76
2	33702KN5671	LENS, TAILLIGHT	1	9.97
3	33704MBN671	SOCKET COMP., TAILLIGHT	1	9.87
4	34908KW3003	BULB, WEDGE BASE (12V 3.4W)	1	1.08
5	80101MBN670	CLIP, TAILLIGHT CORD	1	0.76
6	90502KK9910	WASHER, 4.5X18	2	0.61
7	9390334310	SCREW, TAPPING, 4X12	2	0.07
8	9391324180	SCREW, TAPPING, 4X12	1	0.37
9	9459125000	CLIP, 2X50	1	1.12

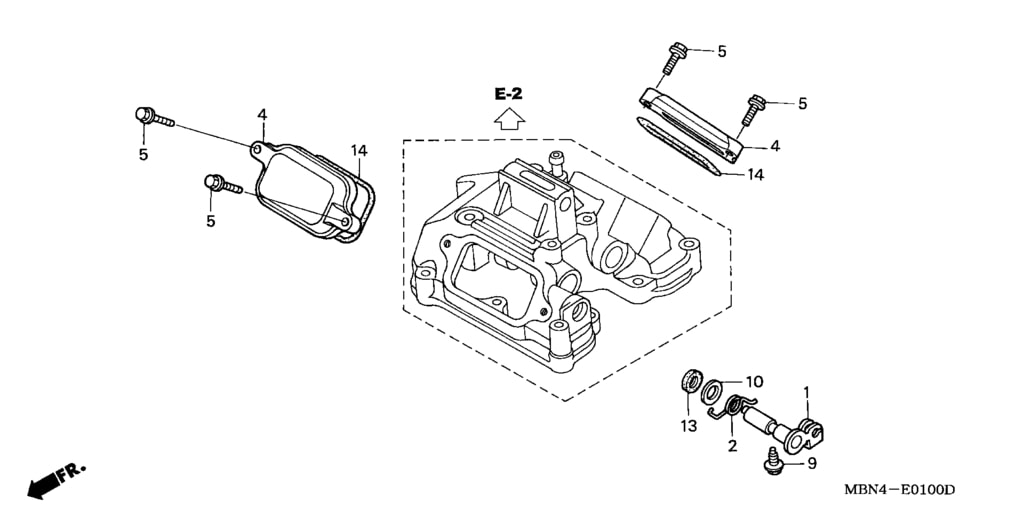

Tappet Cover

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	12320MBN670	LIFTER COMP., VALVE	1	17.63
2	12321MBN670	SPRING, VALVE LIFTER	1	2.15
4	12361MBN670	COVER, TAPPET ADJUSTING	2	16.54
5	90004GHB650	BOLT, FLANGE, 6X20 (NSHF)	4	0.99
9	90081HC4000	BOLT, FLANGE, 6X17	1	2.19
10	90408KCY670	WASHER, THRUST, 11X20X1	1	1.42
13	91202MG3003	OIL SEAL, 11X16X5 (ARAI)	1	1.92
14	91351881000	O-RING, 66MM	2	2.34

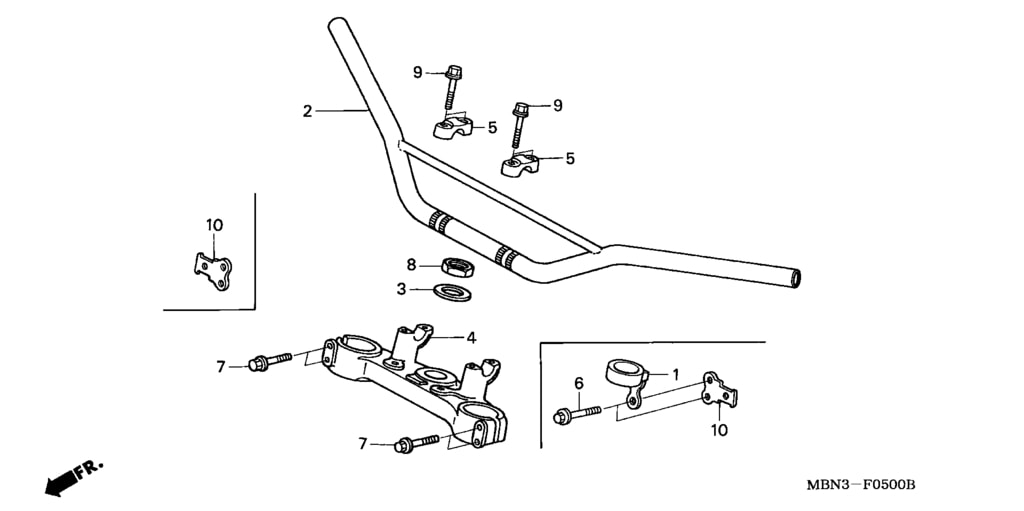

Top Yoke

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	45470KCY650	GUIDE COMP BRAKE HOSE	1	22/63
2	53100MBN670ZB	PIPE, STEERING HANDLE	1	55.27
3	53215GF8000	WASHER, DUST SEAL	1	0.43
4	53230MBN670	BRIDGE, FORK TOP	1	130.62
5	53231KZ3600	HOLDER, UPPER	2	9.38
7	90103MBN670	BOLT, FLANGE, 8X42	4	1.16
8	90304425000	NUT, STEERING STEM	1	5.60
9	963000803500	BOLT, FLANGE, 8X35	4	1.17
10	61308KCE680	STAY FR. WINKER	1	6.34

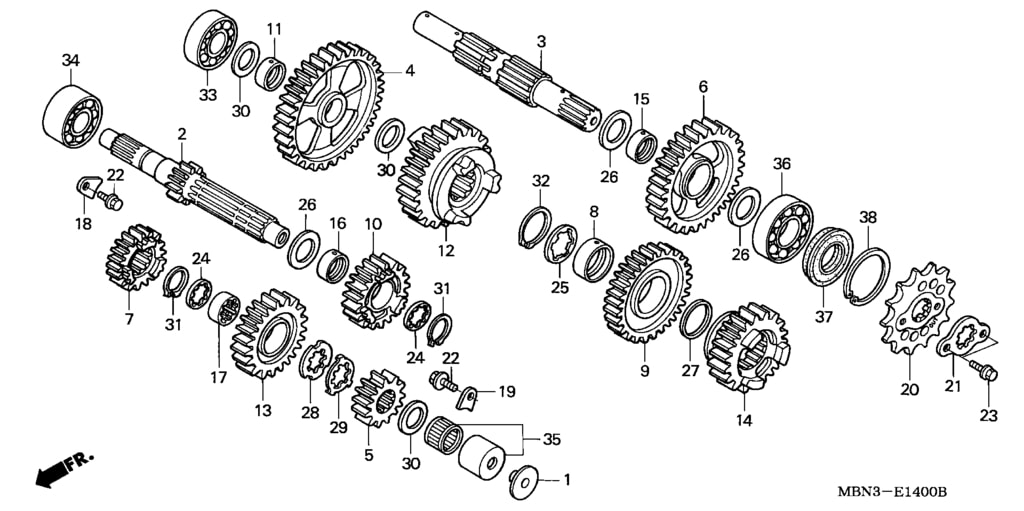

Transmission

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	15171KN8000	GUIDE, LIFTER ROD	1	7.39
2	23211MBN670	MAINSHAFT (12T)	1	137.53
3	23220MBN670	COUNTERSHAFT COMP.	1	91.74
3	23220MBN671	COUNTERSHAFT COMP.	1	91.74
4	23411MBN670	GEAR, COUNTERSHAFT LOW	1	82.27
5	23421MBN670	GEAR, MAINSHAFT SECOND	1	34.15
6	23431MBN670	GEAR, COUNTERSHAFT SECOND	1	66.75
7	23441MBN670	GEAR, MAIN-SHAFT THIRD	1	65.98
8	23442MR5670	BUSH, 28X31X10	1	8.43
9	23451MBN670	GEAR, COUNTERSHAFT THIRD	1	66.75
10	23461MBN670	GEAR, MAIN-SHAFT FOURTH	1	66.75
11	23462HB3000	BUSH, 20MM	1	2.91
12	23471MBN670	GEAR, COUNTERSHAFT FOURTH	1	90.18
12	23471MBN671	GEAR, COUNTERSHAFT FOURTH	1	90.18
13	23481MBN670	GEAR, MAIN-SHAFT FIFTH (26T)	1	69.08
14	23491MBN670	GEAR, COUNTERSHAFT FIFTH	1	84.26
14	23491MBN671	GEAR, COUNTERSHAFT FIFTH	1	84.26
15	23495KV3700	COLLAR, 25X28X9.5	1	8.17
16	23495MB0000	COLLAR, 25X12	1	10.33
17	23512KY2000	COLLAR, SPLINE, 25X12.4	1	8.06
18	23521MBN670	PLATE A, BEARING SETTING	1	4.08
19	23531MBN670	PLATE B, BEARING SETTING	1	2.69
20	23801MBN670	SPROCKET, DRIVE (14T)	1	20.61
21	23811MN8000	PLATE, FIXING	1	4.89
22	90071MF5000	BOLT, FLANGE SOCKET, 6X14	2	1.88
23	90118958003	BOLT, FLANGE, 6X12	2	2.12
24	90451KY2000	WASHER, SPLINE, 25X31X1.5	2	1.61
25	90452MR7000	WASHER, SPLINE, 28X34X1.5	1	1.39
26	90456MA6000	WASHER, THRUST, 25MM	3	0.65
27	90458729920	WASHER, THRUST, 28MM	1	2.47
28	90461KY2000	WASHER, SPLINE, 25MM	1	2.25
29	90462KAZ000	WASHER, LOCK, 25MM	1	3.25
30	90469ME5000	WASHER, THRUST, 20X0.9	3	1.25
31	90601107000	CIRCLIP, 25MM	2	1.02
32	90603MN4000	CIRCLIP, 28MM	1	1.91
33	91001GM4033	BEARING, RADIAL BALL (6204) (NTN)	1	9.08
34	91003MBN671	BEARING, BALL, 5205A	1	28.54
35	91022MG2791	BEARING, NEEDLE, 20MM	1	16.03
36	91024MBN671	BEARING, BALL, 6305	1	25.94
37	91205MBN672	OIL SEAL, 25X36X5	1	3.61
38	9452440100	CIRCLIP, INTERNAL, 40MM	1	0.68

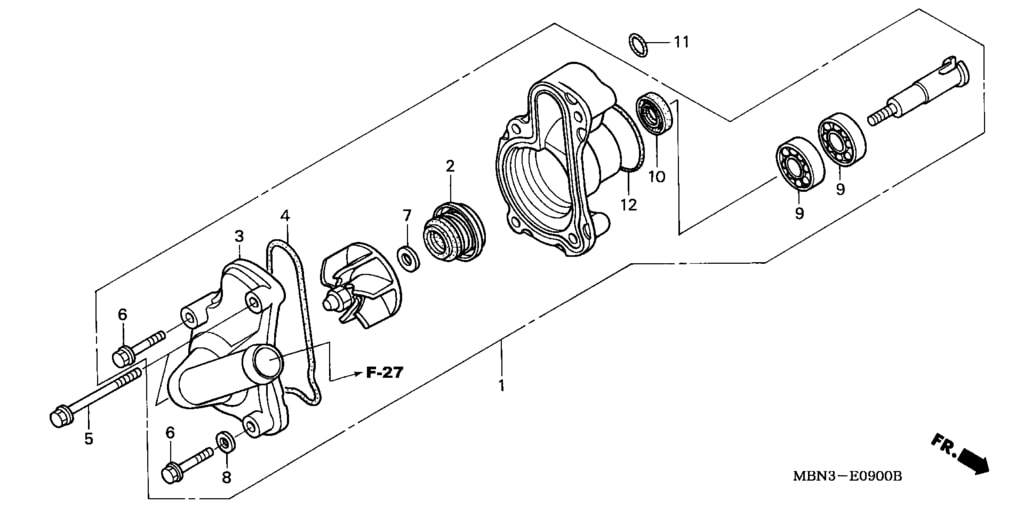

Water Pump

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	19200MBN670	PUMP ASSY., WATER	1	107.98
2	19217MAL300	SEAL, MECHANICAL	1	42.05
3	19221MBN670	COVER, WATER PUMP	1	36.17
4	19226MBN670	GASKET, WATER PUMP COVER	1	3.44
5	90004GHB730	BOLT, FLANGE, 6X50 (NSHF)	2	1.08
6	90017883000	BOLT, FLANGE, 6X32	2	1.43
7	90423KJ9000	WASHER, 7.2X13X1.2	1	0.73
8	90463ML7000	WASHER, SEALING, 6.5MM	1	2.01
9	91053SM4951	BEARING, RADIAL BALL, 6001ZZ	2	12.28
10	91201148003	OIL SEAL, 12X22X5 (ARAI)	1	2.08
11	91301GK1003	O-RING, 22X2 (ARAI)	1	1.06
12	91302MB0013	O-RING, 32.95X2.62 (ARAI)	1	2.19

Wiring Loom (US Version)

Part Ref.	Genuine Part #	Description	Quantity	GBP £
1	30401KCY670	CUSHION, C.D.I. UNIT	1	2.88
2	30410MBN671	C.D.I. UNIT	1	116.79
3	30500MBN671	COIL ASSY., IGNITION	1	48.80
4	30700MBN671	CAP ASSY	1	20.52
5	31400MN1680	REGULATOR COMP., A.C.	1	82.61
6	32100MBN670	HARNESS, WIRE	1	55.31
7	90620SB2003	BAND, WIRE HARNESS	1	5.59
9	90652KT1771	BAND, WIRE (BLACK)	1	1.13
11	966000601800	BOLT, SOCKET, 6X18	2	0.59
12	963000602800	BOLT, FLANGE, 6X28	1	0.94

Alternator	Bottom Yoke	Camshaft	Cam Tensioner	Carburetor
Clutch	Crankcase	Cylinder	Cylinder Head	Exhaust
Forks	Frame	Front Brake	Front Caliper	Front Fender
Front Wheel	Fuel Tank	Gaskets A	Gaskets B	Gear Shift Drum
Handlebars	Head Light	Kick Start	Left Cover (Stator)	Meter
Oil Pump	Pedals & Levers	Piston & Crank	Radiators	Rear Caliper
Rear Fender	Rear Master Cylinder	Rear Wheel	Right Cover (Clutch)	Seat & Right Panel
Shock	Step Foot	Stripe	Swinging Arm	Tail Light
Tappet Cover	Top Yoke	Transmission	Water Pump	Wiring
