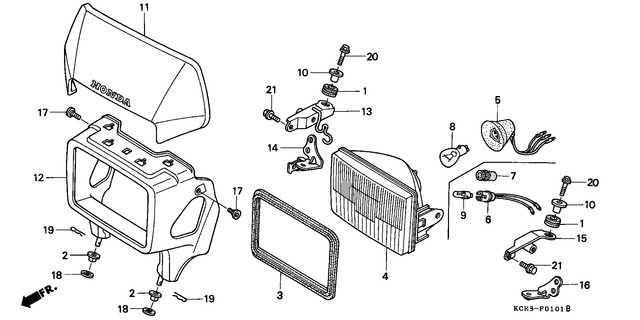

European Headlight Assembly
Click To Display Larger Image

No. Part Number Honda Description Quantity
1 17245107010
(17245-107-010)
RUBBER, AIR CLEANER CASE MOUNTING 4.14(€4.72) ($6.62)002
219113KCY650
(19113-KCY-650)
RUBBER, VISOR LOWER1.20 (€1.37)($1.92) 002
333102MG2000
(33102-MG2-000)
PACKING, HEADLIGHT20.68 (€23.58)($33.09) 001
433120KCY641
(33120-KCY-641)
HEADLIGHT UNIT61.67 (€70.30)($98.67) 001
533130GJ1711
(33130-GJ1-711)
SOCKET COMP., HEADLIGHT12.62 (€14.39)($20.19) 001
633140167003
(33150-098-900)
SOCKET ASSY., POSITION LAMP10.36 (€11.81)($16.58) 001
733155166003
(33155-166-003)
RUBBER, JOINT2.76 (€3.15)($4.42) 001
834901388611
(34901-388-611)
BULB, HEADLIGHT (12V 35/35W) 12.89(€14.69) ($20.62)001
934903388611
(34903-388-611)
BULB, POSITION (12V 4W)1.43 (€1.63)($2.29) 001
1061104MA6720
(61104-428-000)
COLLAR2.72 (€3.10)($4.35) 002
1161140KCYE80ZA
(61140-KCY-E80ZA)
PLATE SET, FR. NUMBER (WL) *NH196* 87.19(€99.40) ($139.50) 001
1261301KCY650ZD
(61301-KCY-650ZD)
CASE, HEADLIGHT *R134*54.16 (€61.74)($86.66) 001
1361305KCY650
(61305-KCY-650)
STAY A, R. HEADLIGHT5.24 (€5.97)($8.38) 001
1461306KCY650
(61306-KCY-650)
STAY B, R. HEADLIGHT5.24 (€5.97)($8.38) 001
1561405KCE650
(61405-KCE-650)
STAY A, L. HEADLIGHT5.24 (€5.97)($8.38) 001
1661406KCY650
(61406-KCY-650)
STAY B, L. HEADLIGHT5.24 (€5.97)($8.38) 001
1790106KAF000
(90106-KAF-000)
BOLT, SPECIAL, 6MM2.03 (€2.31)($3.25) 002
1890501KCY650
(90501-KCY-650)
WASHER, 6MM0.71 (€0.81)($1.14) 002
199425108000
(94251-08000)
PIN, LOCK, 8MM0.92 (€1.05)($1.47) 002
20957010602207
(957010602207)
BOLT, FLANGE, 6X220.92 (€1.05)($1.47) 002
21963000801200
(963000801200)
BOLT, FLANGE, 8X121.20 (€1.37)($1.92) 002
